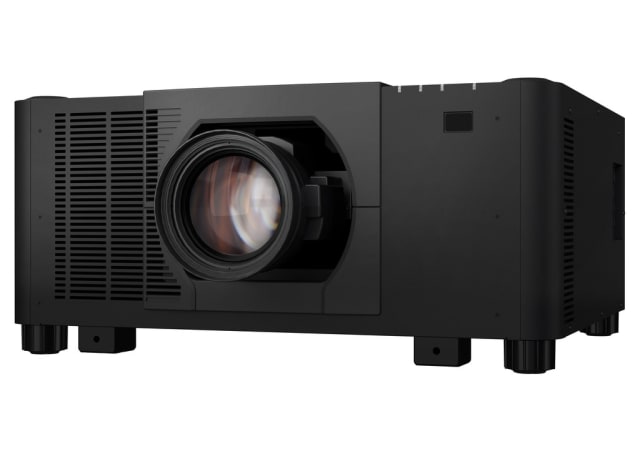

Sharp XP-A201U 20,000-Lumen Professional Advanced LCD Laser Installation Projector
The Sharp A201U presents the same high quality Japanese design and engineering standards, delivering on Sharp/NEC’s promise of quality, service and sustainability. It encapsulates efficiency with long-lasting imaging performance at high brightness with movie-quality colour rendition.
High brightness with extreme efficiency
Sharp A201U is the first and only LCD projector featuring RB laser technology, this innovative solution is highly efficient in producing the most intensely natural tones, minimising power consumption whilst delivering brilliant, almost DCI-P3 colour performance at high brightness levels. Consistently superior imaging quality is safeguarded with an IP5X rated optical engine, sealed against even the finest dust particles and eliminating maintenance demands.
Featuring advanced installation capabilities, easily managed with full ProAssist support, the compact Sharp A201U delivers the reliability, functionality and value as demanded by higher education, corporate, leisure and museum applications.
Benefits
- No lamp replacement – up to 25,000 h maintenance free operation possible due to Laser Light Source.
- No filter service required – the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget
- Compact design – a large venue projector with a comparatively small footprint and light weight design.
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending.
- Projection Technology
- 3LCD Technology
- Native Resolution
- 1920x1200
- Aspect Ratio
- 16:10
- Contrast Ratio (typ.)
- 3,000,000:1 (Dynamic)
- Brightness (Lumen)
- 20000 Lm / 21000 Lm Center
- Light Source
- Laser
- Light Source Life
- 25,000 hrs
- Lens
- 6 motorized lens options
- Lens Adjustment
- Motorized
- Lens shift
- Up to H:±25, V:+65,-65
- Keystone correction
- +/- 40° manual horizontal / +/- 30° manual vertical
- Projection Factor
- depending on lens selection (std. option NP54ZL at 1.25-2.01:1)
- Projection Distance (m)
- 0.68 – 80.77m
- Screen Size (diagonal)
- Maximum: 1,270 / 500"; Minimum: 152 / 60"
- Zoom
- Motorized
- Focus Adjustment
- Motorized
- Frequency
- Horizontal: analog: 0-0 kHz, digital: 15/24-153 kHz; Vertical: 24 – 120 Hz
- Supported Resolutions
- 1080i/50/60; 1080p/24/25/30/50/60; 1920x1200 (WUXGA) - 640x480 (VGA); 2048 x 1080 (2k); 2560 x 1600 (WQXGA); 4096 x 2160 (4k); 720p/50; 720p/60
- Digital Input
- 1 x 3G-SDI; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
- Digital Output
- 1 x HDBaseT supporting HDCP 2.2
- Audio Input
- 1 x HDBaseT audio support; 2 x HDMI audio support
- Audio Output
- 1 x 3.5 mm Stereo Mini Jack (variable)
- Input Control
- 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
- LAN
- 1 x RJ45
- USB
- 1 x USB A (2A power delivery)
- Remote Control
- Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
- Power Supply
- 100-240 V AC; 50 - 60 Hz
- Power Consumption
- 1530 Normal / 1400 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by
- Dimensions (W x H x D) [mm]
- 650 x 262 x 549 (without lens and feet)
- Weight [kg]
- 28
- Fan Noise [dB (A)]
- 42 / 34 (Normal / Silent)
- Colour Versions
- Black
- Operating Temperature
- 0ºC to 40ºC
- Operating Humidity
- 20% to 80%
- Storage Temperature
- -10ºC to 50ºC
- Storage Humidity
- 20% to 80%
- Lenses (Motorized)
- NP51ZL (0.53-0.65:1); NP52ZL (0.65-0.86:1); NP53ZL (0.86-1.25:1); NP54ZL (1.24-2.01:1); NP55ZL (1.98-3.95:1); NP56ZL (3.92-7.5:1)
- Safety and Ergonomics
- CE; EAC; ErP; RoHS; RCM; TUEV Type Approved
- Special Characteristics
-
4K/60Hz interfaces; AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; IP5X/IP6X rated; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical 0.65 max/-0.65 max, horizontal ± +0.25 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 25,000 hrs Light Source Life; Virtual Remote for direct PC control
- Energy Efficiency
- ECO scheduler; Intelligent power management; Less than 0.5W stand-by power; Longer light source life; Software scheduling; Timer function
- Ecological Materials
- 100% recyclable packaging; Downloadable manuals
- Ecological Standards
- ErP compliant
- Shipping Content (Accessories)
- IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM
