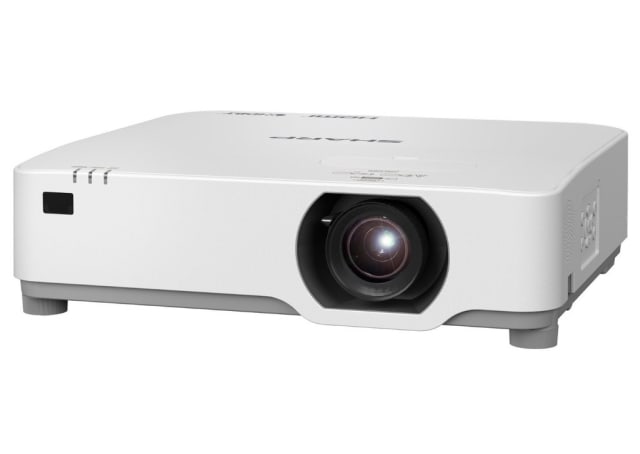

P series Laser WUXGA 6200lm Projector
XP-P621U-W

P series Laser WUXGA 6200lm Projector

The Sharp P621U is a premier entry installation LCD laser projector designed to meet the needs of higher education and corporate users. At 7000 lumens, WUXGA resolution and outstanding LCD color fidelity the P Series delivers impressive looking images in all kinds of demanding applications.

Super silent yet brilliantly versatile

The Sharp P621U projector carries Sharp’s patented IP5x sealed LCD cooling system which eliminates the need for a filter and combined with the maintenance free laser light source, this projector is as close to set-and-forget as you will find in projection. The benefit of Sharp’s advanced cooling system is whisper quiet operation that eliminates the distraction that can sometimes be caused by a more noisy projector. Enjoy time-saving installation flexibility with broad horizontal and vertical manual lens shift, a 1.6x manual zoom lens, roll free capability and HDBaseT input.

Benefits

  • IP5x sealed cooling system provides a filter-free projection solution
  • Whisper quiet operation for minimal distraction
  • LCD, laser technology delivers an impressive and color accurate image
  • Manual horizontal & vertical lens shift enables flexible projector placement
  • Built-in HDBaseT input provides a single connection for video, audio and control
  • 4K Ready - Display stunning 4K UHD 30Hz content using Sharp's proprietary high performance video processing/scaling chip
  • Supports 21:9 aspect ratio for more engaging meeting spaces
  • Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in higher education classrooms and corporate conference rooms
Projection Technology
3LCD Technology
Native Resolution
1920x1200
Aspect Ratio
16:10
Contrast Ratio (typ.)
3,000,000:1
Brightness (Lumen)
6200 Lm Normal / 6500 Lm Center / 5500 Lm Silent Mode; compliant with ISO21118-2020
Light Source
Laser
Light Source Life
20,000 hrs
Lens
F= 1.6–2, f= 15.3–24.6 mm
Lens shift
H:±20, V:+44,-0
Keystone correction
+/- 30° manual horizontal / +/- 30° manual vertical
Projection Factor
1.08–1.76:1
Projection Distance (m)
0.8 – 12.9m
Screen Size (diagonal)
Maximum: 762 / 300"; Minimum: 76 / 30"
Zoom
Manual; x1.6
Focus Adjustment
Manual
Digital Input
1 x HDBaseT; 2 x HDMI™ supporting HDCP
Audio Output
1 x 3.5 mm Stereo Mini Jack (variable)
Input Control
1 x D-Sub 9 pin (RS-232) (male)
LAN
1 x RJ45
USB
1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Eco Mode Control; Freeze; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption
310 Normal / 280 Silent Mode / 1 Network Stand-by / 0.4 Stand-by
Operating Temperature
5ºC to 40ºC
Operating Humidity
20% to 80%
Storage Temperature
-10ºC to 50ºC
Storage Humidity
20% to 80%
Dimensions (W x H x D) [mm]
480 x 122 x 407 (without lens and feet)
Weight [kg]
9.7
Fan Noise [dB (A)]
29 / 22 (Normal / Silent)
Colour Versions
White
Safety and Ergonomics
CE; ErP; RoHS; RCM; TUEV Type Approved
Built-In Speaker
1 x 20 (mono)
Special Characteristics

AMX Beacon; Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; Crestron Connected; Direct Power-Off Function; Free Tilt; HDBaseT; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; NaViSet Administrator 2; Optional User Logo; OSD with 25 languages; Password Security System; PJ LINK; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer

Ecological Standards
ErP compliant; RoHs compliant
Ecological Materials
Downloadable manuals; ECO packaging
Shipping Content (Accessories)
2x AAA Batteries; IR Remote Control; Power Cord; Projector; Quick Setup Guide; Security Sticker; Users Manual
