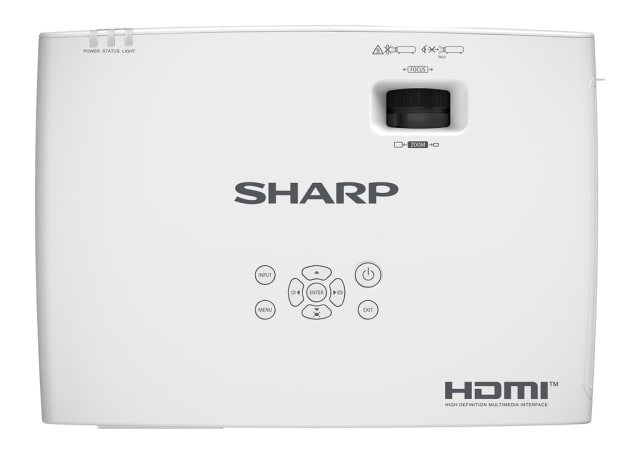

5,000 Lumen Professional LCD Laser Projector
For outstanding projection performance at an impressively low total cost of ownership, the Sharp E501U appeals to cost-conscious users who demand professional reliability. Delivering 5,000 lumens of brightness and the vivid colour reproduction of 3LCD technology, this compact WUXGA laser projector packs a powerful punch while weighing just 5kg.
High Brightness, Low Cost
Designed for versatility, the E501U offers flexible installation options and a long operational life, making it a natural fit for classrooms, training facilities, and meeting rooms. Combining high performance, low maintenance, and exceptional value, it’s the smart choice for any budget-aware installation.
Benefits
- Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.
- Enjoy a Lower TCO – highest reliability, maintenance free operation, low power consumption and up to 20000 hours life; the Laser light source results in a significantly lower total cost of ownership.
- Risk Group 2 – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.
- Cost Saving Device Management – save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.
- Projection Technology
- 3LCD Technology
- Native Resolution
- 1920x1200
- Aspect Ratio
- 16:10
- Contrast Ratio (typ.)
- 5,000,000:1
- Brightness (Lumen)
- 5000 Lm Normal / 5300 Lm Center / 4000 Lm Silent Mode; compliant with ISO21118-2020
- Light Source
- Laser
- Light Source Life
- 20,000 hrs
- Lens
- F= 1.6–1.76, f= 19.16–23.02 mm
- Keystone correction
- +/- 30° manual horizontal / +/- 30° manual vertical
- Projection Factor
- 1.37–1.65:1
- Projection Distance (m)
- 0.85 – 11m
- Screen Size (diagonal)
- Maximum: 762 / 300"; Minimum: 76 / 30"
- Zoom
- Manual; x1.2
- Focus Adjustment
- Manual
- Digital Input
- 2 x HDMI™ supporting HDCP
- Audio Output
- 1 x 3.5 mm Stereo Mini Jack
- Input Control
- 1 x D-Sub 9 pin (RS-232) (male)
- LAN
- 1 x RJ45
- USB
- 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 1.5A Power Supply
- Remote Control
- Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Eco Mode Control; Freeze; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left
- Power Supply
- 100-240 V AC; 50 - 60 Hz
- Power Consumption
- 310 Normal / 250 Silent Mode / 1 Network Stand-by / 0.4 Stand-by
- Operating Temperature
- 5ºC to 45ºC
- Operating Humidity
- 20% to 80%
- Storage Temperature
- -10ºC to 50ºC
- Storage Humidity
- 20% to 80%
- Dimensions (W x H x D) [mm]
- 390 x 128 x 294 (without lens and feet)
- Weight [kg]
- 5
- Fan Noise [dB (A)]
- 39 / 29 (Normal / Silent)
- Colour Versions
- White
- Safety and Ergonomics
- CE; ErP; RoHS; RCM; TUEV Type Approved
- Built-In Speaker
- 1 x 16 (mono)
- Special Characteristics
-
Carbon Savings Meter; Control ID Function; Crestron RoomView; Free Tilt; Geometric Correction; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; NaViSet Administrator 2; Optional User Logo; OSD with 30 languages; Password Security System; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer
- Ecological Standards
- ErP compliant; RoHs compliant
- Ecological Materials
- Downloadable manuals; ECO packaging
- Shipping Content (Accessories)
- 2x AAA Batteries; IR Remote Control; Power Cord; Projector; Quick Setup Guide; Security Sticker; Users Manual
