Installation options to suit you
Create exciting digital displays with our flexible mounting options.
This unit can be installed in a variety of ways, including portrait, landscape, facing upwards and downwards, so you can select the most effective mode to display your content. This flexibility means you can use it for a wide variety of applications in office environments, meeting rooms and educational settings.
Displays that accommodate your every need
Enjoy the flexibility of showcasing variable content at a time that suits you

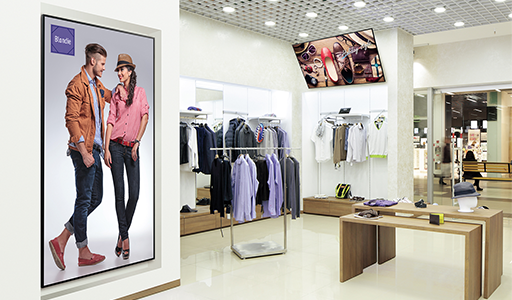

Different business environments require different display operating times, and that’s not a problem. This display can operate 24/7, perfect for transportation hubs or service station restaurants that need to provide information to customers all day, every day.
- Screen Size
- Max. Resolution
- 1,920 x 1,080 pixels
- Pixel Pitch (H x V)
- 0.483 x 0.483 millimetre
- Max. Brightness (average)
- 700 cd/m2
- Active Screen Area
- 927.94 x 521.96 millimetre
- Response Time
- 8 ms (grey to grey, avg.)
- Edge Lit LED
- 10 W + 10 W
- VESA (4 points), 200 mm pitch, M6 screw
- Power Supply
- 100V - 240V AC, 50/60 Hz
- Power Consumption
- 135 watts
- Dimensions (W x D x H) (approx, display only)
- 949 x 57 x 543.5 millimetre
- 15.5 kilogram
- Operating Temperature
- 0ºC to 40ºC
- Operating Humidity
- 20% to 80% RH (No condensation)
- Analogue RGB (0.7 Vp-p) [75 Ω], Digital (DVI 1.0 standard–compliant), DisplayPort 1.2, HDMI
- Horizontal/vertical separation (TTL: positive/negative), Sync on green, Composite sync (TTL: positive/negative)
- Plug & Play
- VESA DDC2B
- Power Management
- VESA DPMS, DVI DMPM
- PC Analogue mini D-sub 15 pin
- Audio (3.5mm stereo mini jack)
- PN-ZB03H : HDBaseT™ x 1, or, PN-ZB03W : LAN x 1 (10Base-T/100Base-TX), Wireless adapter x 1 (USB 2.0)
- 3.5mm mini stereo jack
- LAN Port (10Base-T/100Base-TX) x 1
Business Products Warranty Statement
This Sharp product is warranted against faults in material and manufacture for 36 months.
In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.
This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.
Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
