86" Interactive Touch Display
PNLC862

86" Interactive Touch Display

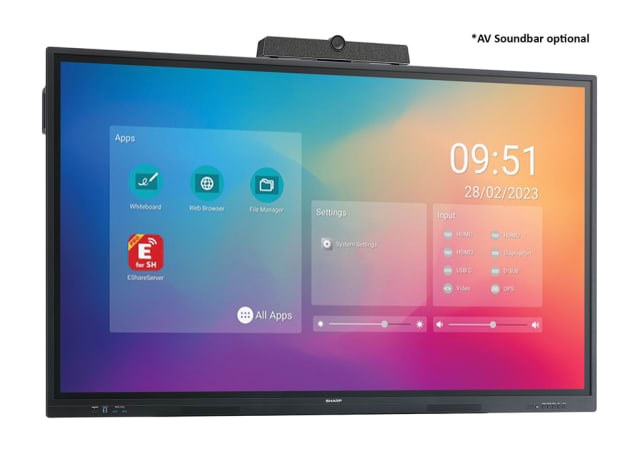

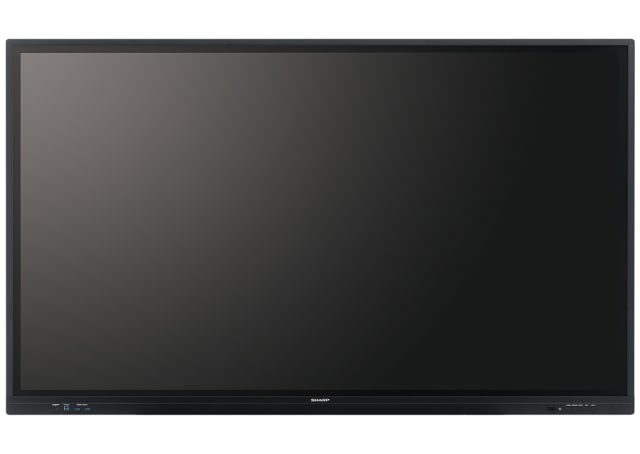

The SHARP PNLC862 interactive touch display combines genuine 4K Ultra-HD resolution and an intuitive “Pen-on-Paper” user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway.

The PNLC862 interactive touch display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.

POA

Boost engagement in learning environments

When you need to engage your audience, you need to make your delivery interactive. Sharp’s expertise in touch screens for education brings forth the LC series, designed to meet the demand for Bring Your Own Device (BYOD) preferences. Equipped with seamless USB-C connectivity, just a single cable connects display to personal device whilst receiving charge in return. Size up your screen area by connecting another display or projector via HDMI-OUT to be seen by a bigger audience.

An all-in-one solution, the LC series features pre-installed functionality for instant interactivity, and with the EShare feature, content can be wirelessly shared between devices for best collaboration amongst peers and mentors. For higher education in classrooms and small work groups, the LC series offers low cost, easy to use functionality to boost engagement in learning environments.

Benefits

  • Enjoy a natural writing experience – with precise and responsive touch interaction through bonded screen technology.
  • Get an out-of-the-box-ready experience – with interactive functionality pre-installed; no external devices needed for an all-in-one solution.
  • EShare – boosts participation by wirelessly sharing content from your device to the display, and from the display to multiple devices simultaneously.
  • USB-C connectivity – instantly appeals to today’s users who favour using their own device. A single cable transmits data, video/audio output and power delivery for the simplest and seamless connection, even powering the connected device at the same time.
  • HDMI-OUT – allows connection of an additional output device such as a projector to present content on a larger canvas to reach a bigger audience.

Panel Technology
IPS with Direct LED backlights
Screen Size
86 inch
Max. Resolution
3840 x 2160 pixels
Max. Brightness (average)
450 cd/m2
Contrast Ratio
1200:1
Viewing Angle (H/V)
178
Supported Orientation
Landscape
Dimensions (W x D x H)
1967.9 x 87.1 x 1170.2 millimetre
Bezel Width
21.9 (left, right & top); 53.2 (bottom) millimetre
Weight
65 kilogram
VESA Mounting [mm]
4 holes M8 800 x 600 (FDMI)
Touch Technology
Infrared
Multi Touch
20-Points
Data Interface
USB 2.0 (full speed) HID; USB powered, plug & play
Native Resolution
3840 x 2160 pixels
Aspect Ratio
16:9
Supported Resolution
1920x1080, 3840x2160, 1024x768, 1920x1200, 4096x2160, 1280x720, 1366x768, 1280x1024, 1440x900, 1600x1200, 1650x1050, 2560x1600, 1920x2160
Input Video Analogue
1 x VGA
Input Video Digital
1 x Display Port (with HDCP), 1 x USB-C (with HDCP), 3 x HDMI (with HDCP)
Input Audio Analogue
1 x 3.5 mm jack
Input Control
1 x RS232, LAN 10Base-T/100Base-TX/1000Base-T
Input Data
4 x USB 3.0 (Type-B)
Output Video Digital
1 x HDMI (loop through: HDMI, DP, OPS slot-in, Android SoC
Output Audio Digital
1 x SPDIF
Wireless LAN
IEEE802.11ac/n/a/g/b compliant
Bluetooth
4.2 compliant, supported protocols: A2DP, AVRCP, GATT, HID, HSP, HFP
OS
Android 11.0
CPU
Arm Cortex-A55 (Quad-Core)
Memory
4GB
Storage
32GB
Compute Module Slot
Slot Technology: Open pluggable specification (NEC/Intel OPS Standard)
Installation

Landscape

Power Consumption
260W ECO (Shipping setting), 500W
Power Savings Mode
<0.5W (ECO Standby); 2W (Network Standby)
Operating Hours
16/7
Operating Temperature
5°C to 35°C
Operating Humidity
20% to 80% (no condensation)
Certificates
CE, FCC, RCM, REACH, RoHS, UL/C-UL
Audio (Speakers)
Integrated Speakers (15W + 15W)
Shipping Content (Accessories)
1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Cable Clamps; Display; Pen Tray; Power Cable; Remote Control; User Manual; Wireless Adapter

Business Products Warranty Statement

This Sharp product is warranted against faults in material and manufacture for 36 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
