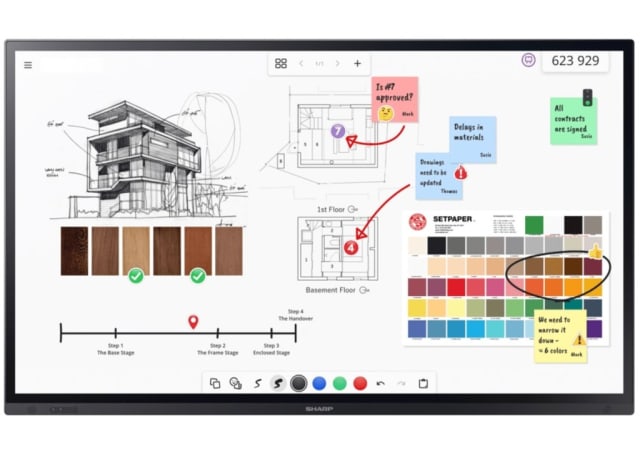

PN-LA862 86" InGlass™Touch Display
PNLA862

PN-LA862 86" InGlass™Touch Display

Bringing advanced professional functionality to Enterprise users, the Sharp/NEC LA series safeguards the highest IT security standards whilst supporting maximum choice and flexibility. An Intel™SDM slot expands the display’s customisable capability allowing safe and seamless integration into corporate IT systems, or benefit from pre-installed functionality including Sharp Meeting Launcher for quick access to your favourite apps and VC platforms, FlatFrog Board collaborative whiteboarding software, and AirServer™ for wireless screen sharing.

POA

Safeguarding security and promoting productivity in hybrid meetings

Featuring InGlass™ M5 premium touch technology, users benefit from the most natural writing experience and advanced interactive functionality. The high brightness output, high haze panel and premium glass coating delivers best readability in well-lit meeting rooms, without distraction from reflections, glare or fingerprints.

The LA series supports orientation any which way, including face up, allowing table-top, tilted desk or multi-board side-by-side installations for up to three displays. Users can connect their own notebook, safely and securely via a USB-C connection, providing best versatility in hybrid meetings and spontaneous collaborative interactions.

The LA series integrates elegantly and seamlessly into high-end meeting rooms and boardrooms providing trusted long-life performance whilst making minimal energy demands.

Benefits

  • Most natural writing experience – InGlass™ M5 premium touch system supports patented pressure sensitivity using passive pens as well as Windows Ink and palm rejection.
  • Secure by design – the non-Android platform with additional security features meets the highest IT security standards.
  • Optional Windows based Intel SDM slot-in PC – driving unlimited versatility with powerful integrated computing. Includes Sharp’s Meeting Launcher for quick and easy access to your apps offering a secure and locked environment.
  • Increase your productivity – benefit from a free one-year license for FlatFrog Board for Rooms. FlatFrog Board whiteboard software makes hybrid work easy and productive for everyone.
  • Energy efficiency – built-in functionality including an ambient light sensor, human presence detection and eco modes help to reduce power consumption.
Panel Technology
IPS with Direct LED backlights
Screen Size
86 inch
Aspect Ratio
16:9
Max. Brightness (average)
500 (LCD panel without glass); 450 (product) cd/m2
Contrast Ratio
1200:1
Viewing Angle (H/V)
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]
1.073 (10bit)
Colour Gamut
68% of DCI
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Supported Orientation
Face Up; Landscape; Portrait
Touch Technology
InGlass™ M5
Multi Touch
Real multi-touch up to 20 touches
Response Time [ms]
≤ 15
Touch Method
Finger; Gloves; Stylus (≥ 2 mm)
Supported Operating System
Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X
Data Interface
USB-HID
Accuracy [mm]
< 1
Windows Ink
yes
Palm Rejection
yes
Type
Premium toughened glass, anti-glare coating; Zero Bonding
Thickness [mm]
3
Haze Level [%]
4 ~ 8
Hardness [H]
≥ 8
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1920 x 1080; 1920 x 1200; 1920 x 2160; 2560 x 1440; 2560 x 1600; 3840 x 2160; 4096 x 2160; 7680 x 4320
Horizontal Frequency [kHz]
15 - 135
Vertical Frequency [Hz]
23 - 76
Input Video Digital
1 x DisplayPort (with HDCP); 1 x USB-C (with HDCP, 65 W); 2 x HDMI (with HDCP)
Input Audio Digital
1 x DisplayPort; 2 x HDMI
Input Control
LAN 100Mbit; RS232
Input Data
1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream); 2 x USB 2.0 (Downstream)
Output Video Digital
1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC)
Output Audio Analogue
1 x 3.5 mm jack
Output Control
1 x LAN 100Mbit
Input Detect
Custom; First; Last
PiP/PbP
Dual-Split; Quad-Split; scalable picture size
Intel® SDM
accepts Intel® Smart Display Modules Large and Small up to 66 W
Ambient Light Sensor
Integrated, triggered actions programmable
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
Presence Sensor
H angle left: 60°, H angle right: 60°, Distance: 3.6 m
Power Consumption
275W shipping
Power Savings Mode
<0.5W (ECO Standby); 2W (Network Standby)
Power Management
VESA DPMS
Power Supply
100-240 V AC; 50/60 Hz; internal
Operating Temperature
0°C to 35°C
Operating Humidity
20% to 80% (no condensation)
Storage Temperature
-20°C to 60°C
Storage Humidity
10% to 80%
Dimensions (W x H x D) [mm]
1,965.4 x 1,163.9 x 86.5
Weight [kg]
71.5
Bezel Width [mm]
32.3 (bottom); 4.8 (left, right and top)
VESA Mounting [mm]
4 holes; 600 x 400 (FDMI); M8
Ingress Protection
IP6x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm]
2,095 x 1,310 x 225
Packaging Weight [kg]
87
Material
Metal
Free Software Included
FlatFrog Board for Rooms (1 year) - free download
Certificates
CE; EMC Class B; Energy Star 8; FCC Class B; PSB; RCM; RoHS; SASO; UL/C-UL
Pixel Failure Class
ISO 9241-307, Class 1
Resistance to Fire
Metal backcover, plastic material certified acc. to UL94-5VB
Energy Efficiency
LED backlight
Ecological Standards
EnergyStar 8.0
Special Characteristics
HDMI ARC; NaViSet Administrator 2 - free download; Powered USB Port (5 W)
Audio (Speakers)
Integrated Audio Amplifier (for optional speakers up to 2 x 15 W); Integrated Speakers (10 W + 10 W)
Shipping Content (Accessories)
1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Bracket for Mini PC; Cable Clamps; Display; Power Cable; Remote Control; Setup Manual
Operating Hours
24/7
External Control
Crestron V2; HDMI CEC; HTTP Browser; Scheduled Timer; SNMP
Remote Management
Automated Email Alerts; NEC NaViSet Administrator 2
Security
Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)

Business Products Warranty Statement

This Sharp product is warranted against faults in material and manufacture for 36 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
