(Discontinued) 75-inch 4K SoC 24/7 Digital Display (Discontinued) 75-inch 4K SoC 24/7 Digital Display (Discontinued) 75-inch 4K SoC 24/7 Digital Display (Discontinued) 75-inch 4K SoC 24/7 Digital Display (Discontinued) 75-inch 4K SoC 24/7 Digital Display
(Discontinued) 75-inch 4K SoC 24/7 Digital Display
PNHM751

(Discontinued) 75-inch 4K SoC 24/7 Digital Display

Discontinued

Versatile High-definition Signage with Built-in SoC ControllerThe PN-HB751 is a monitor you can trust to get your message out there. What sets it apart is a built-in system-on-a-chip (SoC) controller that allows it to deliver digital signage straight out of the box.

  • Built-in SoC (System on Chip)
  • Support for H.265/HEVC
  • SHARP Open Architecture Platform
  • Smart Connectivity
  • Autoplay with Media Player
  • Web-Based Signage
  • Bundled SHARP Content Distributor software
  • 4K LCD Panel
  • Flexible installation options
  • 24/7 Operation


POA

Flexibility as standard

This unit can be installed in a variety of ways, including portrait, landscape and flat facing upwards, so you can select the most effective mode to display your content. This flexibility means you can use it for a wide variety of applications in office environments, meeting rooms and educational settings.

Displays that accommodate your every need

Enjoy the flexibility of showcasing variable content at a time that suits you

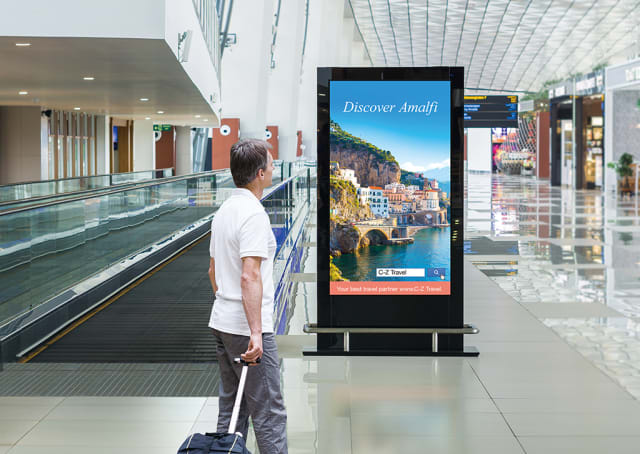

Different business environments require different display operating times, and that’s not a problem. This display can operate 24/7, perfect for transportation hubs or service station restaurants that need to provide information to customers all day, every day.

Clearly a better choice

Showcase your content in the best possible way with superior display features

You can enjoy the perfect combination of slim and stylish design and crystal clear pictures with this unit from Sharp. You can get your message across loud and clear, wherever it needs to be seen.

This true 4k Ultra HD (3840 x 2160) resolution is four times the resolution of 1080p Full HD. It means on-screen content, including movies and still images, is rendered in superbly realistic detail and depth.

This is further enhanced by innovative LED backlighting, which ensures vivid colours and boosted contrast for sharper text and beautifully textured graphics.

Panel Type
TFT LCD
Screen Size
75-inch inch
Max. Display Colours
1,070 million colours
Max. Resolution
3840 x 2160 pixels
Pixel Pitch (H x V)
0.430 × 0.430 millimetre
Max. Brightness (average)
500 cd/m2
Contrast Ratio
5,000 : 1
Viewing Angle (H/V)
178°/ 178°(CR ≧ 10)
Active Screen Area
1,650.24 × 928.26 millimetre
Response Time
9.5 ms (gray to gray, avg)
Backlight
Direct Lit LED
Built-in
10 W + 10 W
Mounting
VESA (4 points), 600 x 400 mm pitch, M6 screw
Power Supply
100V - 240V AC, 50/60 Hz
Power Consumption
320 watts
Dimensions (W x D x H)
1,676 × 88 × 954 millimetre
Weight
37 kilogram
Main Accessories

AC power cord, remote control unit, battery (AAA size) × 2, CD-ROM, set-up manual, cable clamp (insertion type) × 2, cable clamp (stick-on type) × 3, USB flash drive/microSD card cover, USB flash drive/microSD card cover fixing screw, logo sticker, wirele

Installation

Face-up
Landscape
Portrait

Operating Humidity
20% to 80% RH (No condensation)
Video
Analogue RGB (0.7 Vp-p) [75Ω], DisplayPort™ 1.2, HDMI™
Synchronisation
Horizontal/vertical separation (TTL: positive/negative)
Plug & Play
VESA DDC2B
Standard
Analogue RGB (0.7 Vp-p) [75Ω], DisplayPort™ 1.2, HDMI™
Options
PN-ZB03PC, PN-ZB03W, PN-ZB03H
DisplayPort™
1
HDMI™
2
PC Analogue mini D-sub 15 pin
1
RS-232C
1
USB
3
Audio (3.5mm stereo mini jack)
1
Options
PN-ZB03H : HDBaseT™ x 1, or, PN-ZB03W : LAN x 1 (10Base-T/100Base-TX), Wireless adapter x 1 (USB 2.0)
DisplayPort™
1
RS-232C
1
3.5mm mini stereo jack
1
