70-inch Windows Collaboration Display
PNCD701

70-inch Windows Collaboration Display

The world’s first certified Windows collaboration display from Sharp.

PNCD701 is certified for Skype for Business and is a next generation 4K 70” interactive display that enables better space utilisation and more productive collaboration in meetings, boardrooms, training rooms, technical reviews and almost anywhere else.

The world’s first certified Windows collaboration display from Sharp

For teamwork to be truly effective, people need to easily connect and share ideas and information in a comfortable environment – whether they are working in a meeting space, conference room or anywhere in the world. This Windows collaboration display is certified for Skype for Business and is a next generation 4K 70” interactive display that enables better space utilisation and more productive collaboration in meetings, boardrooms, training rooms, technical reviews and almost anywhere else. As well as using Sharp’s award-winning technology, together with an integrated microphone, high quality camera and IoT sensor hub, it works seamlessly with the best Microsoft 365 collaboration tools. Furthermore, it’s all backed by the cloud to deliver outstanding ease of use and enable the continual analysis of meeting room conditions and usage.

Key features

Accelerate teamwork collaboration

The world’s first certified Windows collaboration display seamlessly works with Windows 10 and Microsoft Office 365 at room scale

Experience superb technology and usability

BYOD (bring your own device) and Plug-and-Play with the award winning 4K Ultra-HD 70-inch interactive display

Make your space smarter

Sensor endpoint for smart building solutions using Azure IoT

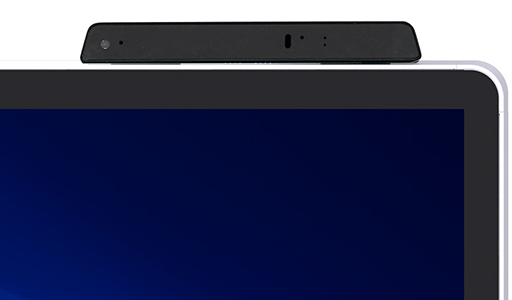

Make Your Space Smarter – IoT Sensor

Creating a comfortable environment in your meeting rooms pays real dividends in terms of helping people concentrate and improving productivity. The Windows collaboration display from Sharp has integrated sensors that can connect to the Microsoft Azure Digital Twins IoT platform, and other commercially available cloud and subscription services such as Sharp WorkSpaces* as part of a smart building environment.

The IoT sensor collects spatial intelligence, room temperature, humidity, CO2 levels, TVOC levels, and Motion.

A more natural approach

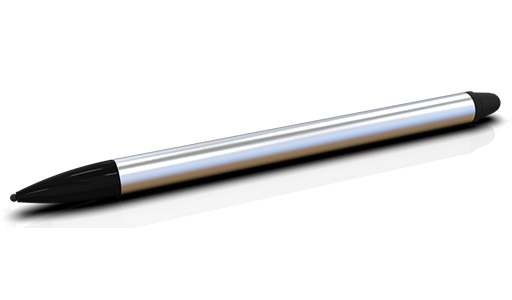

The Windows collaboration display comes with a Passive pen as standard. Designed with a precise 2mm tip, this powerful and ergonomic stylus sits comfortably in the hand and enhances the Pen-on-Paper experience. It is ideal for discussing complex technical information or graphics, such as architectural plans or engineering designs, where you need to review even the smallest details.

Screen Size
70-inch
Panel Type
UV2A LCD
Max. Resolution
3,840 x 2,160 pixels
Max. Display Colours
1.06 billion colours (approx)
Pixel Pitch (H x V)
0.401 x 0.401 millimetre
Max. Brightness (average)
350 cd/m2
Contrast Ratio
4,000 : 1
Viewing Angle (H/V)
176°/ 176° (CR > 10)
Active Screen Area
1,538.9 x 865.6 millimetre
Response Time
6 ms (grey to grey, avg)
Backlight
Edge Lit LED
Built-in
12W + 12W
Power Supply
100V - 240V / AC 50/60Hz
Power Consumption
370 watts
Dimensions (W x D x H) (approx, display only)
1,623.6 x 90 x 976.4 millimetre
Weight
65 kilogram
Operating Temperature
5°C to 35°C
Operating Humidity
20% to 80% RH (No condensation)
Main Accessories

AC power cord, set-up manual, USB Type C (DP AltMode) cable (8.0 m), passive touch pen, HDMI cable, USB touchback cable

Installation

Landscape

Touch Technology
Projected Capacitive Touch
Multi Touch
10 points
PC Connection Port
USB 2.0 (type B) x 1, USB (type C) x 2
Power Supply
Supplied from main unit
Driver
OS: Windows 8.1 (32-bit or 64-bit version), Windows 10 (32-bit or 64-bit version) (Windows 10 recommended.); macOS v10.12, v10.13; Google Chrome OS Version 75 or later
Protection Glass Thickness
Thickness: approx. 1.9 mm, Shock resistance: 130 cm
Communication
Passive stylus included
Video
HDMI x 1, USB Type C (DP Alt Mode) x2
Plug & Play
Supported
Power Management
Supported
HDMI™
1
PC Analogue mini D-sub 15 pin
USB
2
Audio (3.5mm stereo mini jack)
1
3.5mm mini stereo jack
1
Standard
LAN port (External Gb Ethernet) x1, LAN port (Internal Gb Ethernet) x1

Business Products Warranty Statement

This Sharp product is warranted against faults in material and manufacture for 36 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
