(Discontinued) 86-inch 4k SoC Interactive Whiteboard (Discontinued) 86-inch 4k SoC Interactive Whiteboard (Discontinued) 86-inch 4k SoC Interactive Whiteboard (Discontinued) 86-inch 4k SoC Interactive Whiteboard (Discontinued) 86-inch 4k SoC Interactive Whiteboard (Discontinued) 86-inch 4k SoC Interactive Whiteboard
(Discontinued) 86-inch 4k SoC Interactive Whiteboard
PN86HC1

(Discontinued) 86-inch 4k SoC Interactive Whiteboard

Discontinued

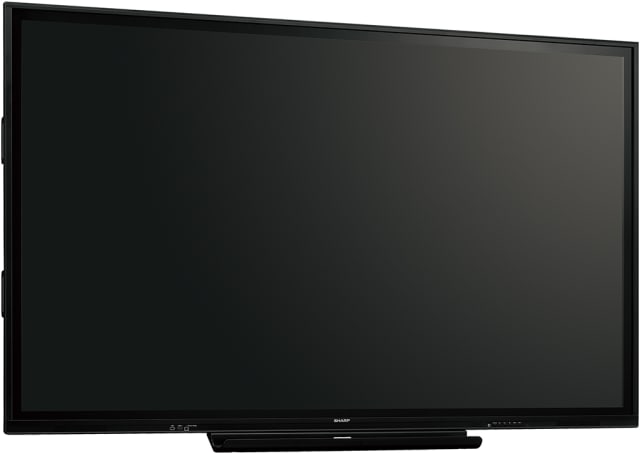

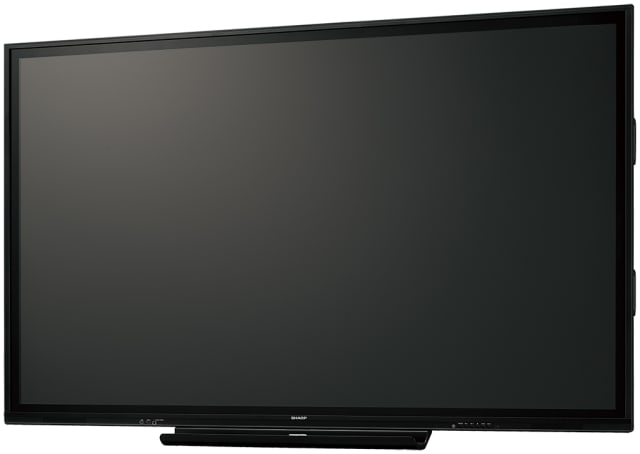

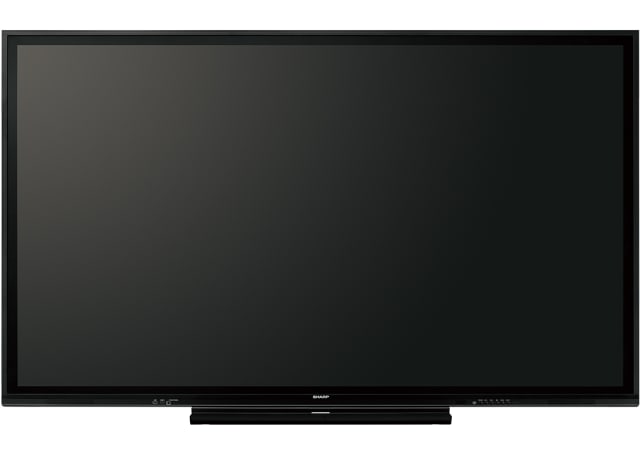

The Sharp PN86HC1, BIG PAD smart interactive 86” display enables ultra-clear ‘4K Reading’ of detailed data and makes presenting easy with an intuitive Pen-on-Paper user experience. It also has the tools you need for effortless productivity such an integrated System on Chip (SoC) controlled with launcher, whiteboard, overlay and wireless functionality.

POA

Clearly a better choice

Showcase your content in the best possible way with superior display features

You can enjoy the perfect combination of slim and stylish design and crystal clear pictures with this unit from Sharp. You can get your message across loud and clear, wherever it needs to be seen.

This true 4k Ultra HD (3840 x 2160) resolution is four times the resolution of 1080p Full HD. It means on-screen content, including movies and still images, is rendered in superbly realistic detail and depth.

This is further enhanced by innovative LED backlighting, which ensures vivid colours and boosted contrast for sharper text and beautifully textured graphics.

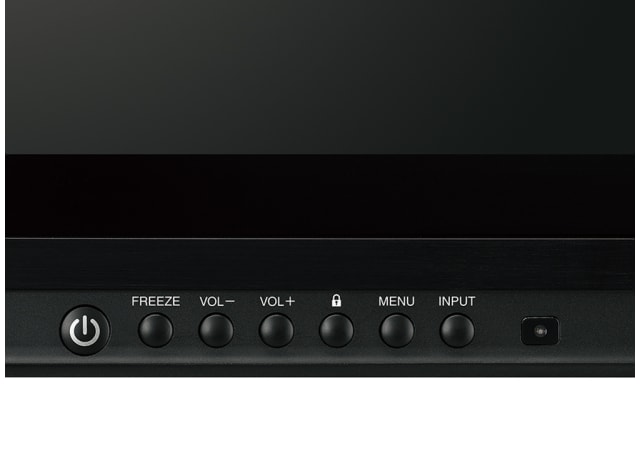

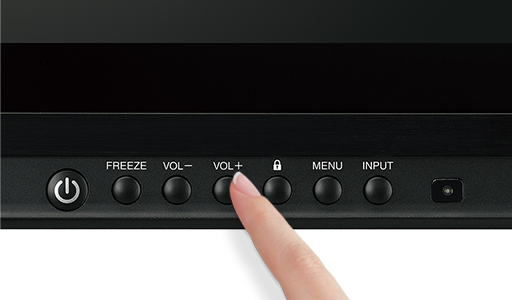

One-Touch Buttons

Designed with your convenience in mind - buttons for frequently used functions such as power on/off, input switching, volume up/down, and freeze are neatly arranged on the front of the frame.

Collaboration is the key

Perfect for environments that require easy and responsive operation with smart integrated collaboration tools. In busy office environments or interactive meetings and training sessions, it encourages effective group teamwork by promoting idea sharing, boost productivity and helps to deliver great presentations with the aim of achieving better business outcomes.

Panel Type
4K LCD
Screen Size
86-inch inch
Max. Resolution
3840 x 2160 pixels
Max. Display Colours
1.07 billion colours
Pixel Pitch (H x V)
0.4935 x 0.4935 mm millimetre
Max. Brightness (average)
400 cd/m2
Contrast Ratio
1200:1
Viewing Angle (H/V)
178°/ 178°(CR ≧ 10)
Active Screen Area
1895 x 1066 millimetre
Response Time
8 ms (grey to grey, avg.)
Backlight
Direct Lit LED
Touch Technology
IR, Infrared blocking detection method
Multi Touch
20 points
Protection Glass Thickness
Thickness: Approx 4.0 mm, Shock resistance: 130 cm*3
PC Connection Port
USB 2.0 x 2 (Front x 1, Rear x 1)
Power Supply
Supplied from main unit
Driver
OS: Windows® 7, 8.0, 8.1,10. Mac OS X V 10.13 - V10.14 (Intel processor)
Built-in
10W + 10W
Mounting
4 points, 700 x 400 mm pitch, M8 screw
Power Supply
100V - 240V AC, 50/60 Hz
Power Consumption
530 watts
Dimensions (W x D x H)
1988 x 113 x 1175 millimetre
Weight
80 kilogram
Main Accessories

AC power cord, remote control unit, remote control unit battery (AAA size) x 2, set-up manual, blank sticker, cable clamp x 3, USB cable, pen tray, SHARP Pen soware (CD-ROM), touch pen x 2, wireless adapter

Installation

Landscape

Communication
Passive stylus included
Operating Temperature
5°C to 35°C
Operating Humidity
20% to 80% (no condensation)
Video
Analogue RGB (0.7 Vp-p) [75 Ω], HDMI™
Synchronisation
Horizontal/vertical separation (TTL: positive/negative)
Plug & Play
VESA DDC2B
Standard
NTSC (3.58 MHz)/NTSC (4.43 MHz)/PAL/PAL60 /SECAM
HDMI™
3
PC Analogue mini D-sub 15 pin
1
RS-232C
1
Audio (3.5mm stereo mini jack)
1
Component Video
Mini x 1
3.5mm mini stereo jack
1

Business Products Warranty Statement

This Sharp product is warranted against faults in material and manufacture for 36 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
