(Discontinued) 65-inch 4k InGlass SoC Interactive Whiteboard
DiscontinuedSee more and do more with the SHARP PN-65TH1 BIG PAD 4K Interactive Display
Powerful, flexible and technologically advanced, the PN-65TH1 BIG PAD interactive display from SHARP combines a “4K reading” and intuitive “Pen-on-Paper” user experience with the accuracy of the exceptionally smooth InGlass™ touch technology. It also has an integrated Android PC with whiteboard, and wireless functionality to help enhance your productivity and collaboration in various situations.
Collaboration is the key
Perfect for environments that require easy and responsive operation with smart integrated collaboration tools. In busy office environments or interactive meetings and training sessions, it encourages effective group teamwork by promoting idea sharing, boost productivity and helps to deliver great presentations with the aim of achieving better business outcomes.
Flexibility as standard

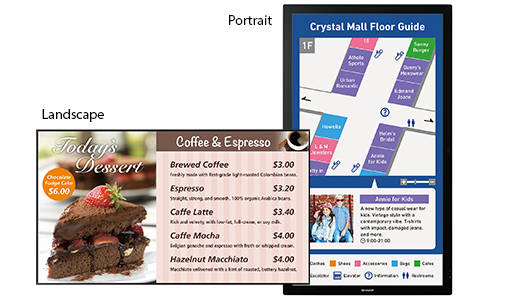

This unit can be installed in a variety of ways, including portrait and landscape, so you can select the most effective mode to display your content. This flexibility means you can use it for a wide variety of applications in office environments, meeting rooms and educational settings.
Clearly a better choice
Showcase your content in the best possible way with superior display features
You can enjoy the perfect combination of slim and stylish design and crystal clear pictures with this unit from Sharp. You can get your message across loud and clear, wherever it needs to be seen.
This true 4k Ultra HD (3840 x 2160) resolution is four times the resolution of 1080p Full HD. It means on-screen content, including movies and still images, is rendered in superbly realistic detail and depth.
This is further enhanced by innovative LED backlighting, which ensures vivid colours and boosted contrast for sharper text and beautifully textured graphics.
Work more intuitively

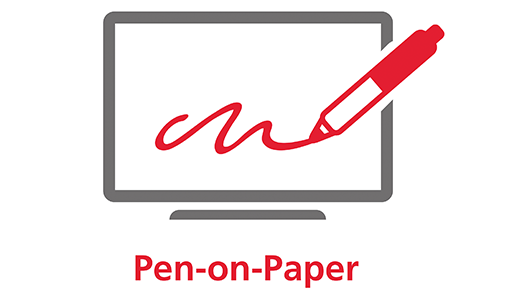

Writing on the screen of this unit has the same feel as writing with a real pen on paper - and is just as simple. Especially as the InGlass™ touch technology enables smoother and more responsive writing, with minimal latency or delay compared to other technologies.
You can choose the comfort of the Sharp pen, or the simplicity of using just your finger. Either way it accurately recognises whatever you are writing or drawing with. You can also enjoy much more effortless control with its gesture support for smooth pinching, zooming and rotating.
By enabling a more a natural and intuitive way of working, you can quickly focus on the specific content that you want to highlight, annotate or discuss and achieve better results from group collaboration. Especially as users feel more confident using the technology without any training and are more willing to present and share information. Its enhanced reliability minimises any technological distractions, so you waste less time.
- Panel Type
- TFT LCD
- Screen Size
- 65-inch inch
- Max. Display Colours
- 1.07 billion colours (approx)
- Max. Resolution
- 3840 x 2160 pixels
- Pixel Pitch (H x V)
- 0.372 × 0.372 millimetre
- Max. Brightness (average)
- 350 cd/m2
- Contrast Ratio
- 5,000 : 1
- Viewing Angle (H/V)
- 178°/ 178°(CR ≧ 10)
- Active Screen Area
- 1,428.5 × 803.5 millimetre
- Response Time
- 9.5 ms (gray to gray, avg)
- Backlight
- Direct Lit LED
- Touch Technology
- InGlass™
- Multi Touch
- 20 points
- Protection Glass Thickness
- Thickness: Approx. 4 mm Shock resistance: 130 cm
- PC Connection Port
- USB 2.0 (type B) x 2
- Power Supply
- Supplied from main unit
- Driver
- OS: Windows® 7, 8.0, 8.1,10. Mac OS X V 10.13 - V10.14 (Intel processor)
- Built-in
- 10W + 10W
- External
- 10W + 10W
- Mounting
- VESA (4 points), 600 x 400 mm pitch, M6 screw
- Power Supply
- 100V - 240V AC, 50/60 Hz
- Power Consumption
- 270 watts
- Dimensions (W x D x H)
- 1,501 x 98 x 894 millimetre
- Weight
- 48 kilogram
- Main Accessories
-
AC power cord, remote control unit, remote control unit battery (AAA size) × 2, set-up manual, speaker cover × 2, vertical sticker, blank sticker, cable clamp × 5, camera mount, USB cable, eraser, pen tray, SHARP Pen Software (CD-ROM), touch pen (PN-85TH1 x2, PN-75TH1/65TH1 x 1), SHARP Display Connect liscense, Wireless LAN antenna x 2, USB flash drive/microSD card cover, USB flash drive/microSD card cover fixing screw
- Installation
-
Landscape
Landscape backward tilt (0° to 20° or 45°)
Portrait
- Communication
- Passive stylus included
- Operating Temperature
- 5°C to 35°C
- Operating Humidity
- 20% to 80% RH (No condensation)
- Video
- Analogue RGB (0.7 Vp-p) [75 Ω], HDMIT™, DisplayPort™
- Synchronisation
- Horizontal/vertical separation (TTL: positive/negative)
- Plug & Play
- VESA DDC2B
- Power Management
- Supported
- Options
- PN-ZB03PC, PN-ZB03W
- DisplayPort™
- 1
- HDMI™
- 2
- PC Analogue mini D-sub 15 pin
- 1
- RS-232C
- In
- USB
- 3
- Audio (3.5mm stereo mini jack)
- 1
- Options
- PN-ZB03PC: LAN port (10Base-T/100Base-TX/1000Base-T), USB 3.0 x 2, PN-ZB03W : LAN x 1 (10Base-T/100Base-TX), Wireless adapter x 1 (USB 2.0)
- DisplayPort™
- 1
- 3.5mm mini stereo jack
- 1
- Options
- LAN port (10Base-T/100Base-TX/1000Base-T), USB 3.0 x 2
- Standard
- LAN port (10Base-T/100Base-TX/1000Base-T)
