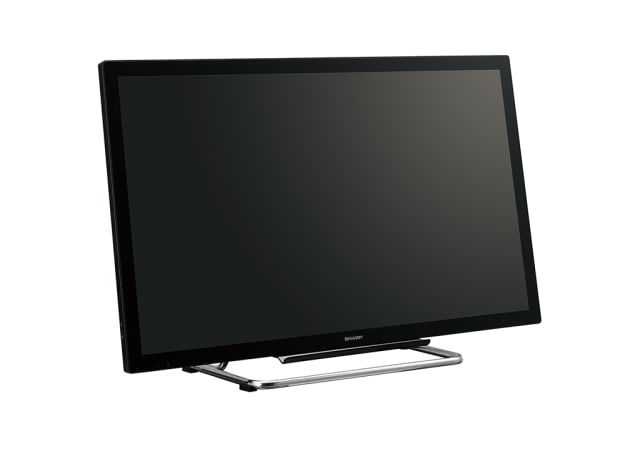

40-inch Full HD Interactive Whiteboard
PN40TC1

40-inch Full HD Interactive Whiteboard

  • New 40” Huddle Board interactive touch screen monitor
  • Ultra smooth capacitive touch technology
  • 10 point touch recognition
  • Touch-operated onscreen menu
  • Minimised glare and fingerprints
  • Mount for web camera
  • Landscape, portrait, or horizontal (face-up) orientation
  • Bundled stand for desktop set-up (landscape orientation)
  • 16-hour daily operation
  • Bundled software includes: SHARP Pen Software, SHARP Display Connect, SHARP Touch Viewer
  • Compatibility with Crestron Connected software
  • MFP connectivity

Flexibility as standard

This unit can be installed in a variety of ways, including portrait, landscape and flat facing upwards, so you can select the most effective mode to display your content. This flexibility means you can use it for a wide variety of applications in office environments, meeting rooms and educational settings.

Collaboration is the key

Perfect for environments that require easy and responsive operation with smart integrated collaboration tools. In busy office environments or interactive meetings and training sessions, it encourages effective group teamwork by promoting idea sharing, boost productivity and helps to deliver great presentations with the aim of achieving better business outcomes.

Screen Size
40-inch
Panel Type
TFT LCD
Max. Resolution
1,920 x 1,080 pixels
Max. Display Colours
16.77 million colours (approx)
Pixel Pitch (H x V)
0.45735 x 0.4494 millimetre
Max. Brightness (average)
300 cd/m2
Contrast Ratio
5,000 : 1
Viewing Angle (H/V)
178°/ 178°(CR ≧ 10)
Active Screen Area
878.1 x 485.3 millimetre
Response Time
9.5 ms (gray to gray, avg)
Backlight
Edge Lit LED
Built-in
10 W + 10 W
Mounting
VESA (4 points), 200 x 200 mm pitch, M6 screw
Power Supply
100V - 240V AC, 50/60 Hz
Power Consumption
89 watts
Dimensions (W x D x H) (approx, display only)
939 x 65 x 546 millimetre
Weight
17.5 kilogram
Operating Temperature
5°C to 35°C
Operating Humidity
20% to 80% RH (No condensation)
Main Accessories

AC power cord, remote control unit, battery (AAA size) x 2, set-up manual, cable clamp x 3, camera mount, USB cable, logo sticker, pen tray, touch pen, CD-ROM, portrait installation operation label, SHARP Display Connect license x 1

Installation

Face-up
Landscape
Portrait

Touch Technology
Projected Capacitive Touch
Multi Touch
10 points
PC Connection Port
USB 2.0 (type B) x 1
Power Supply
Supplied from main unit
Driver
OS: Windows® 7, 8.0, 8.1,10. Mac OS X V 10.6 - V10.13 (Intel processor)
Protection Glass Thickness
Thickness: Approx 2.5 mm, Shock resistance: 130 cm
Communication
Passive stylus included
Video
HDMI™, DisplayPort™ Analogue RGB
Synchronisation
Horizontal/vertical separation (TTL: positive/negative)
Plug & Play
VESA DDC2B
Power Management
VESA DPMS
Options
USB 2.0 (Type A) x 2 works as hub for PC via USB Type B touch input
DisplayPort™
1
HDMI™
2
PC Analogue mini D-sub 15 pin
1
RS-232C
In
USB
3
Audio (3.5mm stereo mini jack)
1
Options
PN-ZB03H : HDBaseT™ x 1, or, PN-ZB03W : LAN x 1 (10Base-T/100Base-TX), Wireless adapter x 1 (USB 2.0)
3.5mm mini stereo jack
1
Standard
LAN Port (10Base-T/100Base-TX) x 1

Business Products Warranty Statement

This Sharp product is warranted against faults in material and manufacture for 36 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
