43" UHD Commercial Display
PN-ME432

43" UHD Commercial Display

Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial Sharp ME Series large format displays.

By focusing on bringing high-powered, integrated and easy-to-use media playback to the customer all while maintaining the proven reliability and quality of previous product, the ME series gives customers a reliable mainstream display to fit all of their digital signage needs.

POA

The flexible system-on-chip platform not only allows for high-end media playback via USB or internal storage but since these products are powered by Android 13, they also allow the ability to install separate APK’s if a third-party application needs to be installed.

On top of this, the updated OSD design includes new and legacy functionality within a brand new aesthetically appealing and stylistic approach.

Key Features

  • 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!

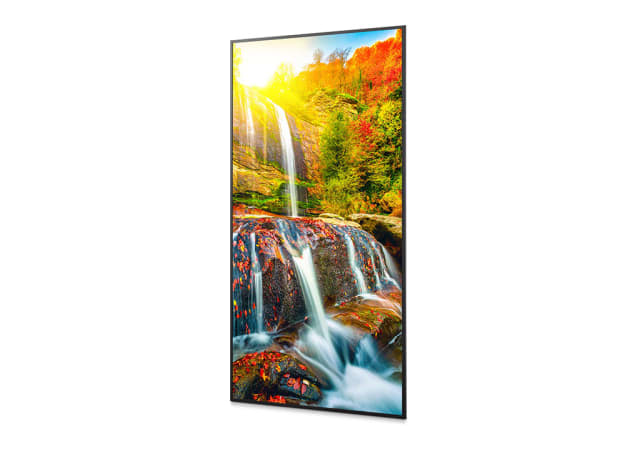

  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs.
  • Powerful System-on-Chip Design to fit your digital signage needs.
  • Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C while supporting both legacy NEC and Sharp protocol.
  • 400 cd/m2 brightness and HDR compatibility will capture the attention of audience in almost any situation.
  • Integrated Media Player allows for playlist creation and scheduled playback via USB or onboard storage.
  • Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C while supporting both legacy NEC and Sharp protocol.
  • Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails.
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations.

Screen Size
43 inch
Panel Technology
ADS with Direct LED backlights
Max. Resolution
3840 x 2160 pixels
Max. Brightness (average)
400 cd/m2
Contrast Ratio
1200:1
Viewing Angle (H/V)
178
Haze Level (%)
25
Supported Orientation
Landscape, Portrait
Dimensions (W x D x H) (display only)
964.6 x 552.5 x 62.0 millimetre
Bezel Width
9.9 (left, right); 9.9 (top, bottom) millimetre
Weight
9.4 kilogram
VESA Mounting [mm]
4x M6 x 14mm (200 x 200)
Horizontal Frequency [kHz]
15 - 135
Vertical Frequency [Hz]
23-76
Native Resolution
3840 x 2160 pixels
Aspect Ratio
16:9
Supported Resolution
4096x2160, 3840x2160, 1920x1200, 1920x1080, 1280x720, 640x480,
Input Video Analogue
N/A
Input Video Digital
3 x HDMI, 1 x USB-C (DP-Alt Mode Supported)
Input Audio Analogue
N/A
Input Control
LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C
Input Data
USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 x1 (Downstream for USB-C), USB-C x1 (Upstream)
Output Audio Digital
3.5mm Mini Jack, SPDIF Optical
Installation

Landscape
Portrait

Ambient Light Sensor
Integrated triggered actions programmable
Temperature Sensor
Integrated Triggered actions programmable 1 sensor
Human Sensor
Optional (KT-RC3)
Power Consumption
90-175
Power Savings Mode
<0.5W (Normal Standby); 2W (Network Standby)
Operating Hours
18/7
Operating Temperature
0ºC to 50ºC
Operating Humidity
20% to 80%
Storage Temperature
-20ºC to 60ºC
Storage Humidity
10% to 80%
Certificates
Energy Star 8.0
Audio (Speakers)
Integrated 10W x 10W, Optional through SP-RM3a
Shipping Content (Accessories)
3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control & Batteries
