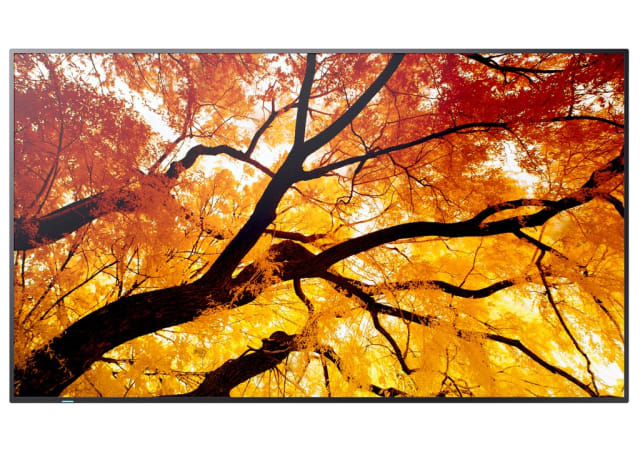

MultiSync® M752 75" Large Format Display
The Sharp MultiSync® M2 Series (32” up to 98”) is purpose-built for demanding signage and meeting room environments.
Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.
Built to perform, designed to last
The versatile solution for professional display applications, the Sharp MultiSync® M2 Series With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
Benefits
- Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
- Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
- Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
- Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.
- Panel Technology
- IPS with Direct LED backlights
- Active Screen Area
- 1,649.7 x 927.9 mm
- Screen Size
- 74.5 inch
- Aspect Ratio
- 16:9
- Pixel Pitch
- 0.430 mm
- Brightness
- 550 cd/m2
- Contrast Ratio
- 1200:1
- Viewing Angle (H/V)
- 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
- Colour Depth [bn]
- 1.073 (10bit)
- Colour Gamut
- 72% of NTSC
- Response Time
- 8ms
- Panel Refresh Rate (Hz)
- 60Hz
- Haze Level (%)
- 25
- Supported Orientation
- Landscape, Portrait & Face Up
- Native Resolution
- 3840 x 2160
- Supported Resolution
- 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 800; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 400; 720 x 480;
- Horizontal Frequency [kHz]
- 15 - 135
- Vertical Frequency [Hz]
- 23-76
- HDMI IN 1
- Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC
- HDMI IN 2
- Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
- HDMI OUT
- Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2, Option, Compute module
- DP IN 1
- Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input
- DP OUT
- Video Output; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Output; Loop Through: DisplayPort IN, USB-C 2
- USB-A 1
- USB 2.0 / 3.2; 4.5 W; Peripherals; USB Storage
- USB-A (Service)
- 2.5 W; Service
- USB-C 1
- Video Input; UHD (60 Hz); DP alt. 1.2; HDCP (2.2); Audio Input; USB 2.0 / 3.2; 65 W
- USB-C 2
- USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
- Audio Output (3.5 mm)
- Audio Output; Line Out
- LAN 1
- 100 MBit/s
- LAN 2
- Loop Through: LAN 1, RS-232C, IR; 100 MBit/s
- RS-232C
- 9600 bps
- Remote In (3.5 mm)
- Eco Sensor (IR-Extender, Ambient and Presence)
- Factory Calibration
- Gamma; Intensity; RGB; Uniformity; White Point
- Calibration with Software
- Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
- Calibration Software
- Display Wall Calibrator
- Compute Module Slot
- RPi4 Compute Module
- Intel® SDM
- accepts Intel® Smart Display Modules Large and Small up to 66 W
- Ambient Light Sensor
- optional via Eco Sensor (PNKTES1)
- Temperature Sensor
- Integrated, 3 sensors, triggered actions programmable
- Human Sensor
- optional via Eco Sensor (PNKTES1)
- Power Consumption
- 140W shipping
- Power Savings Mode
- < 0.5; < 2 (Networked Standby)
- Power Management
- VESA DPMS
- Power Supply
- 100-240 V AC; 50/60 Hz; internal
- Operating Temperature
- 0ºC to 40ºC
- Operating Humidity
- 20% to 80%
- Storage Temperature
- -20ºC to 60ºC
- Storage Humidity
- 10% to 80%
- Dimensions (W x H x D) [mm]
- 1,682.3 x 961.1 x 83.2
- Weight [kg]
- 38
- Bezel Width [mm]
- 14.3 (left, right and top); 14.8 (bottom)
- VESA Mounting [mm]
- 600 x 400 [4x M8]
- Packaging Dimensions (W x H x D) [mm]
- 1,830 x 1,070 x 225
- Packaging Weight [kg]
- 51
- Ingress Protection
- IP5x (front); IP2x (back)
- Material
- Metal
- Accessories
- Eco Sensor (PNKTES1); Soundbar (PN-ZCMS1)
- Safety and Ergonomics
- CE; RCM; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA
- Pixel Failure Class
- ISO 9241-307, Class 1
- Resistance to Fire
- Metal backcover, plastic material certified acc. to UL94-5VB
- Energy Efficiency
- Energy consumption: 103 kWh/1000 h; Energy efficiency class: G; LED backlight
- Ecological Standards
- EnergyStar 8.0
- 3rd Party Certifications
- Certified for Crestron CCV2 and XiO Cloud
- Special Characteristics
- CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
- Colour Versions
- Black Front Bezel, Black Back Cabinet
- Audio
- Integrated Speakers (10 W + 10 W)
- Shipping Content (Accessories)
- 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
- Operating Hours
- 24/7
- External Control
- AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
- Remote Management
- NaViSet Administrator 2
- Security
- Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)
