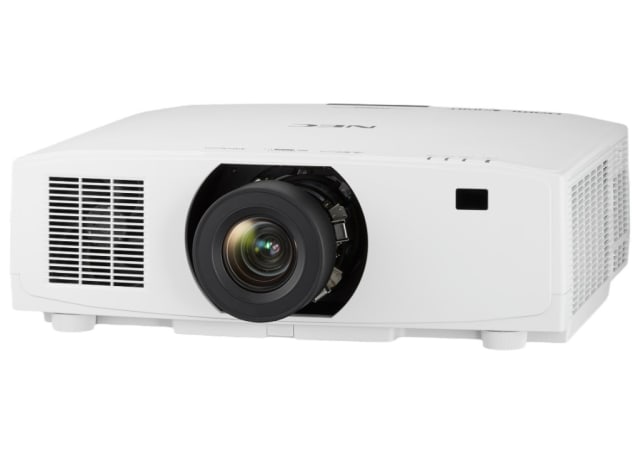

PV Series Laser WUXA 7100lm Projector
NP-PV710UL-W

PV Series Laser WUXA 7100lm Projector

A highly economical projection solution, the PV710UL offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.

POA
Where to buy

Cost-effective LCD-based laser projector with interchangeable lenses

3LCD technology generates brilliantly vivid colour, which, at 7100 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.

The PV710UL offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same mount and lenses as the lamp-based PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the PV710UL offers outstanding value for higher education, corporate, leisure and hospitality sectors.

Benefits

  • No lamp replacement – up to 20,000 hrs maintenance free operation possible due to Laser Light Source.

  • Get Great Performance – while not compromising on quality and ease of use.

  • Low Noise Level – with 30dB*, the silent technology will not disturb your meeting.

  • Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast.

    • Projection Technology
    3LCD Technology
    Native Resolution
    1920x1200
    Aspect Ratio
    16:10
    Contrast Ratio (typ.)
    3,000,000:1
    Brightness (Lumen)
    7100
    Light Source
    Laser
    Light Source Life
    20,000 hrs
    Lens
    5 manual lens options; 5 motorized lens options
    Projection Distance (m)
    0.7 – 50.9m
    Screen Size (diagonal)
    Max. 1,270cm, Min. 101.6cm
    Fan Noise
    40db / 31db (Normal/ Silent)
    Dimensions (W x D x H)
    407 x 164 x 499 millimetre
    Weight
    11.1 kilogram
    Supported Resolution
    1920x1080, 3840x2160, 1024x768, 1920x1200, 4096x2160, 1280x720, 1366x768, 1280x1024, 1440x900, 1600x1200, 1650x1050, 2560x1600, 1920x2160
    Digital Input
    1 x HDBaseT; 2 x HDMI™ supporting HDCP
    Audio Input
    1 x HDBaseT audio support; 2 x HDMI audio support
    Audio Output
    1 x 3.5 mm Stereo Mini Jack
    Input Control
    1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
    LAN
    1 x RJ45
    USB
    1 x Type A (USB 2.0 high speed)
    Remote Control
    Audio Control; Digital Zoom; Geometric Correction; HDMI; ID Select; ID set; Keystone Correction; Picture Adjust; Picture Mute; Power; Shutter function; Source Select; Test Picture; Wired / Wireless Connection; Zoom/Focus and Lens Shift Control
    Power Consumption
    400-500W, 2.0W (Network Stand-by) / 0.5W (Stand-by)
    Operating Temperature
    0ºC to 40ºC
    Operating Humidity
    20% to 80%
    Storage Temperature
    -10ºC to 50ºC
    Storage Humidity
    20% to 80%
    Optional Accessories
    10 optional bayonet lenses Air Filter (NP-06FT) Cable Cover (NP10CV, NP10CV-B)
    Lenses (Manual)
    NP11FL (0.79:1), NP12ZL (1.16-1.52:1), NP13ZL (1.46-2.95:1), NP14ZL (2.9-4.68:1), NP15ZL (4.59-7.02:1)
    Lenses (Motorized)
    NP40ZL (0.79-1.11:1) NP41ZL (1.3-3.02:1) NP43ZL (2.99-5.93:1) NP44ML (0.32:1) NP50ZL (0.6-0.75:1)
    Certificates
    RCM, CE, EAC, ErP, RoHS
    Shipping Content (Accessories)
    Power Cable, Projector, Quick Setup Guide, IR Remote Control
