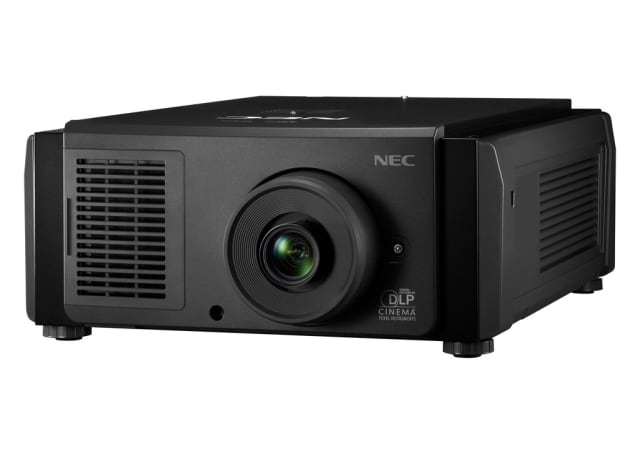

NC1503L 2K Cinema RB Laser Projector
With the latest RB Laser light source technology which is almost entirely speckle-free, the NC1503L digital cinema projector can be used with a high gain screen, impressing audiences with exceptional brightness and premium quality imaging.
The NC1503L – Quietest projection performance for mid-sized screens
The NC1503L is highly flexible, without the need for a special exhaust system, the projector is easy to install and suitable for ceiling, floor or mobile applications in mid-sized theatres with screen sizes of up to 17m wide.
With maintenance-free operation including protection against dust ingress and a low, eco-friendly power consumption, theatre operators benefit from a reduced overall total cost of ownership (TCO) and therefore achieve a greater per seat revenue.
Treat your movie-goers to next generation digital cinema projection for immersive, out-of-this-world motion picture experiences.
Benefits
- Compact, lightweight and quiet – easy installation in small projection booths, easy transportation for mobile cinemas and perfectly suited for boothless cinemas.
- Sealed optical engine – minimising dust ingress, consistent performance is assured and no special maintenance is required.
- Highly flexible – with no exhaust system required, the NC1503L is suitable for floor and ceiling installation and versatile content playback.
- Virtually zero maintenance – no lamp and no filter replacement costs, no maintenance personnel costs and no lamp stock due to the innovative Laser Light engine.
- Enjoy a Lower TCO – highest reliability, maintenance-free operation, low power consumption and up to 50000 hours life; the Laser light source results in a significantly lower total cost of ownership.
- Projection Technology
- 3-chip DLP Cinema® Technology
- Screen Size [m]
- up to 17 in DCI colour (1.8 Gain screen)
- Brightness (Lumen)
- 14,000 Lumen
- Contrast Ratio (typ.)
- 1600:1
- Light Source
- Laser Light Source, expected life: up to 50000 h
- Lens
- Zoom / Focus / Shift: Motorized. Other: Range of shift is dependent on lens. Primary Lenses: NP-9LS12ZM1: 1.2-1.72:1; NP-9LS13ZM1: 1.33-2.1:1; NP-9LS16ZM1: 1.62-2.7:1; NP-9LS20ZM1: 2.09-3.9:1
- DMD Specifications
- 2048 x 1080. Chip: 0.69" S2K, DLP Cinema® Technology
- Cooling Method
- Liquid: Air and liquid cooling inside
- External Controls
- 1 x GPIO (3D) (D-sub 15 pin female); 1 x GPIO (D-sub 37 pin female); 1 x RJ45 100Base-T
- Operating Temperature [°C]
- 10 to 35
- Operating Humidity [%]
- 10 to 85 - non-condensing
- Storage Temperature [°C]
- -10 to 50
- Storage Humidity [%]
- 10 to 85 - non-condensing
- Power Supply
- Built-in power supply. Projector Power Supply Unit: 200 to 240V AC, 50/60Hz, single phase
- Rated Input Current
- Projector power: 10.5A @ 200V-240V
- Power Consumption [W]
- 1835 typ.
- Heat Dissipation (BTU)
- 6268 typ.
- External Dimensions (W x H x D) [mm]
- 700 x 288 x 812
- Weight [kg]
- 68 (without lens)
- Fan Noise [dB (A)]
- < 50
- Special Characteristics
- Built-in IMS (IMS3000, optional); Compact model; Dust sealed optical engine; Full HFR 3D support; Laser Light System; Latest digital technology; Low TCO; Metal filter
- Ecological Materials
- Laser technology reduces power usage and reduces replacement materials required
- External Controls
- 2 x RJ45 (4 GPI and 6 GPO); 2 x RJ45 Gigabit Ethernet
- Input Terminals
- 1 x USB Type 2.0; 2 x 3GSDI bidirectional (input and output); 2 x USB Type 3.0; eSATA; HDMI
- Output Terminals
- 2 x RJ45 (16-channel AES3-EBU Digital Audio)
- Additional Features
- HFR 3D Support (48 Hz/eye, 60 Hz/eye); Integrated SMS; Integrated Storage: 2 TB (DCP, RAID5); NAS support
- Manufacturer
- Dolby (The Dolby IMS3000 is not a SHARP product. SHARP shall not in any way be liable for any product specifications).
- Oceania
- IEC 62368-1:2014 2nd Edition, IEC 62368-1:2018 3rd Edition,IEC 62471-5:2015, IEC 60825-1:2014 Ed.3, EN 55032:2015,(Marking RCM)
- Laser / Lamp standard
- IEC60825-1 Ed.3:2014 Class 1, IEC62471-5 :2015 Risk Group 3, Laser Notice No. 57IEC60825-1 Ed.3:2014 Class 1, IEC62471-5 :2015 Risk Group 3, Laser Notice No. 57
- Warranty
- 2 years, parts warranty
- Light Source
- 2 years or 7500h (whatever comes first)
