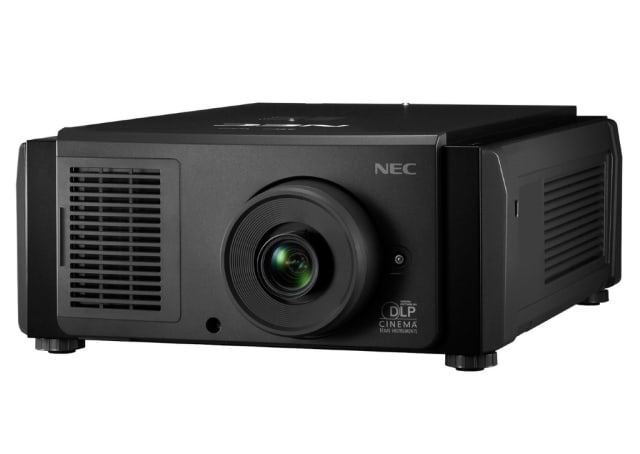

NC1202L 2K Cinema Laser Projector
NP-NC1202L

NC1202L 2K Cinema Laser Projector

Built upon the latest Laser light source technology, the NC1202L digital cinema projector impresses audiences with crisp colours and premium quality imaging. At just 48dB in operation, the almost silent projector supports boothless cinema solutions.

POA

The NC1202L – Quietest projection performance for mid-sized screens

The NC1202L is highly flexible, without the need for a special exhaust system, the projector is easy to install and suitable for ceiling, floor or mobile applications in mid-sized theatres with screen sizes of up to 12m wide.

With maintenance-free operation including protection against dust ingress and a low, eco-friendly power consumption, theatre operators benefit from a reduced overall total cost of ownership (TCO) and therefore achieve a greater per seat revenue.

Treat your movie-goers to next generation digital cinema projection for immersive, out-of-this-world motion picture experiences.

Benefits

  • Compact, lightweight and quiet – easy installation in small projection booths, easy transportation for mobile cinemas and perfectly suited for boothless cinemas.
  • Sealed optical engine – minimising dust ingress, consistent performance is assured and no special maintenance is required.
  • Highly flexible – with no exhaust system required, the NC1202L is suitable for floor and ceiling installation and versatile content playback.
  • Virtually zero maintenance – no lamp and no filter replacement costs, no maintenance personnel costs and no lamp stock due to the innovative Laser Light engine.
  • Enjoy a Lower TCO – highest reliability, maintenance-free operation, low power consumption and up to 50000 hours life; the Laser light source results in a significantly lower total cost of ownership.
Projection Technology
3-chip DLP Cinema® Technology
Screen Size [m]
up to 12 in DCI colour (1.8 Gain screen)
Contrast Ratio (typ.)
1600:1
Light Source
Laser Light Source, expected life: up to 50000 h
Lens
Zoom / Focus / Shift: Motorized. Other: Range of shift is dependent on lens. Primary Lenses: NP-9LS12ZM1: 1.2-1.72:1; NP-9LS13ZM1: 1.33-2.1:1; NP-9LS16ZM1: 1.62-2.7:1; NP-9LS20ZM1: 2.09-3.9:1
DMD Specifications
2048 x 1080. Chip: 0.69" S2K, DLP Cinema® Technology
Cooling Method
Liquid: Air and liquid cooling inside
External Controls
1 x GPIO (3D) (D-sub 15 pin female); 1 x GPIO (D-sub 37 pin female); 1 x RJ45 100Base-T
Operating Temperature [°C]
10 to 35
Operating Humidity [%]
10 to 85 - non-condensing
Storage Temperature [°C]
-10 to 50
Storage Humidity [%]
10 to 85 - non-condensing
Power Supply
Built-in power supply. Projector Power Supply Unit: 200 to 240V AC, 50/60Hz, single phase
Rated Input Current
Projector power: 9.5A @ 200V-240V
Power Consumption [W]
1050 typ.
Heat Dissipation (BTU)
3583 typ.
External Dimensions (W x H x D) [mm]
700 x 288 x 812
Weight [kg]
69 (without lens)
Fan Noise [dB (A)]
< 46
Special Characteristics
Built-in IMS (IMS3000, optional); Compact model; Dust sealed optical engine; Full HFR 3D support; Laser Light System; Latest digital technology; Low TCO; Metal filter
Ecological Materials
Laser technology reduces power usage and reduces replacement materials required
External Controls
2 x RJ45 (4 GPI and 6 GPO); 2 x RJ45 Gigabit Ethernet
Input Terminals
1 x USB Type 2.0; 2 x 3GSDI bidirectional (input and output); 2 x USB Type 3.0; eSATA; HDMI
Output Terminals
2 x RJ45 (16-channel AES3-EBU Digital Audio)
Additional Features
HFR 3D Support (48 Hz/eye, 60 Hz/eye); Integrated SMS; Integrated Storage: 2 TB (DCP, RAID5); NAS support
Manufacturer
Dolby (The Dolby IMS3000 is not a SHARP product. SHARP shall not in any way be liable for any product specifications).
Australia / New Zealand
AS / NZS62368.1, AS / NZS CISPR 32 ClassA (Marking: RCM)
Laser / Lamp standard
IEC60825-1 Ed3 : 2014 Class1, IEC62471-5 Ed1 : 2015 Risk Group3
Warranty
2 years, parts warranty
Light Source
2 years or 7500h (whatever comes first)
