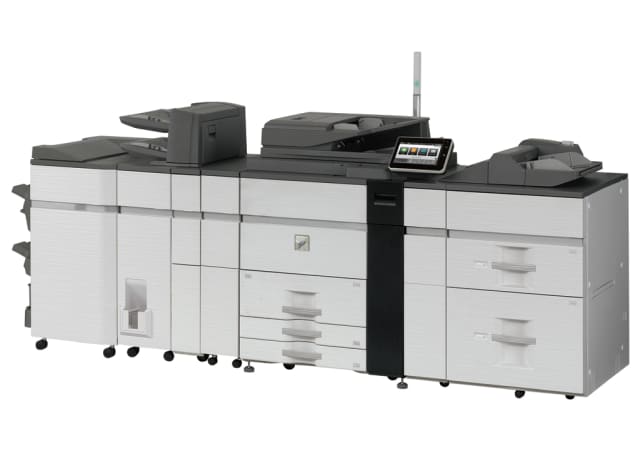

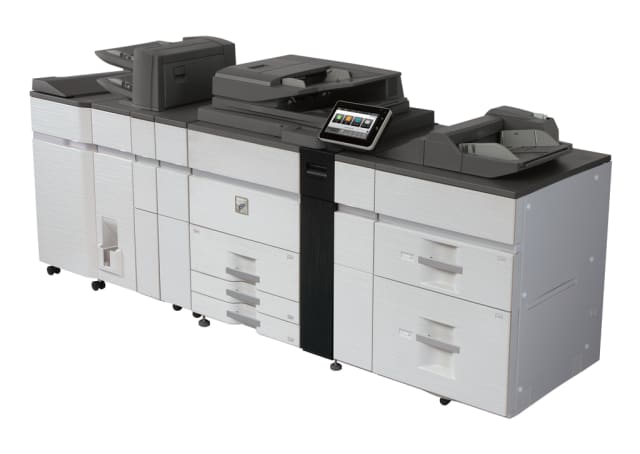

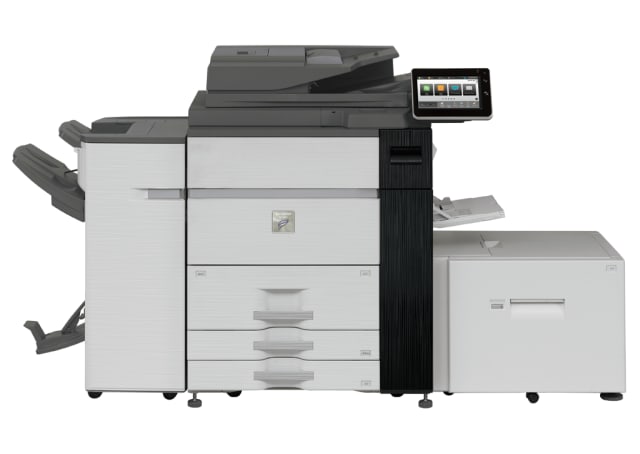

This Sharp MFD is a printer/ copier/ scanning/ facsimile* all-in-one device. Enjoy more functions with this space-saving design.
*requires optional expansion

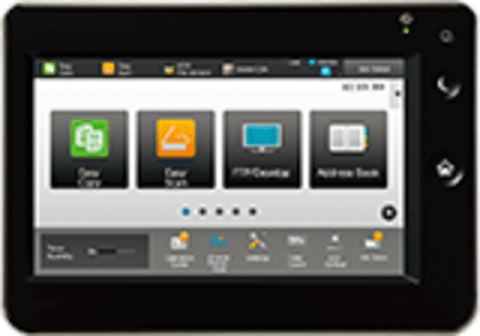

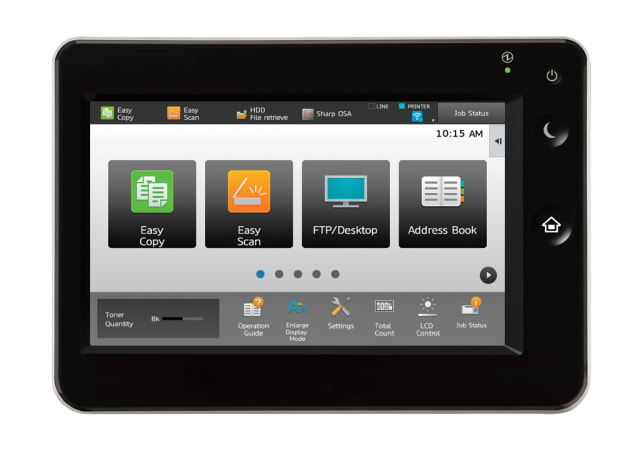

10.1-Inch Colour LCD Touchscreen
Sharp’s award-winning, customisable touchscreen display incorporates an Easy UI mode, for fast, simple operation, with basic functions displayed in large, clearly labelled tiles and keys. And with the Advanced Preview function, you can also check document finishes, edit pages in advance, and more.

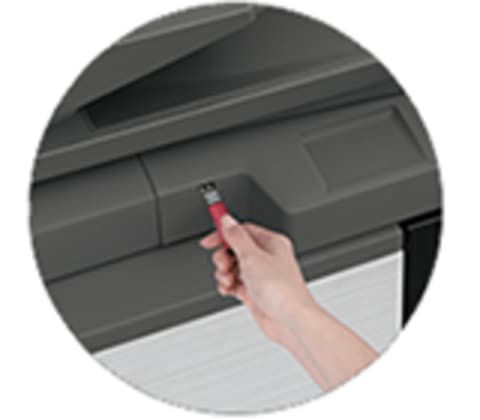

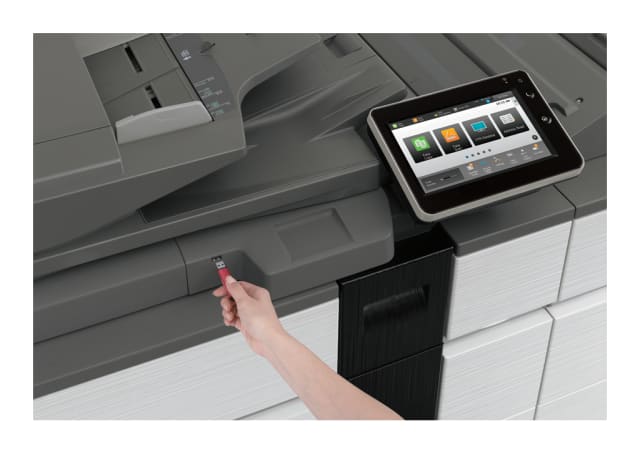

Direct Printing/Scanning with USB Drives
Insert a USB drive and a print/scan command screen will automatically pop up on the LCD. Right away you can print files from the USB drive — or you can scan documents directly to the USB drive.
Multi-layered, leading-edge security features provide enhanced protection and help businesses stay one step ahead of hackers and malicious network intruders. Manage your print security and protect your confidential information whether it is being printed, copied, scanned, faxed, stored, or shared over your network. The standard End-of-Lease feature can also erase all data and personal information at trade-in time.
Access popular cloud services such as Microsoft® OneDrive™ for Business, SharePoint® Online, Google Drive™ and, Box directly from the MFP operation panel with Sharp’s Cloud Connectors.
Convert Documents via OCR
With standard OCR capabilities, users can easily scan and convert documents to popular file formats including Microsoft Word, PowerPoint and Excel, as well as Searchable PDF & Encrypted PDF. Using Qualcomm DirectOffice technology, you can directly print these same file types from USB thumb drives, cloud applications and mobile devices.
The Sharp Remote Operation feature lets you display the MFP’s main control panel on the screen of your PC or mobile device. From a remote location, IT Administrators and Help Desk Professionals can control the Sharp MFP and even assist users through the necessary steps when executing MFP functions.
Sharp OSA® technology can help businesses enhance productivity, reduce costs, and simplify IT management. Utilising industry-standard protocols, Sharp MFPs can easily integrate with third-party applications directly from the operation panel. Using secure and scalable communications, Sharp OSA cloud-ready technology further expands flexibility in how the document workflow and security solutions are implemented.
- Supported Paper Size
- Max A3
- Operation Panel
- Colour 7" LCD Touch-Screen
- Product Environment
- Printed Paper Size
- Max. A3 - Min. A6R
- Standard Paper Capacity
- 1,100 (500-sheets x 2 + 100-sheet Multi bypass)
- Maximum Paper Capacity
- 2,100 (500-sheets x 4 + 100-sheet multi bypass)
- Paper Weight
- Tray: 56-105 g/m2, Bypass 56-200 g/m2
- Output Capacity
- 500 sheets (centre tray), 100 sheets with Opt: MXTR17N ( & MXFN26N)
- Warm-up Time
- 20 sec or less
- Resolution (Equivalent)
- 600 x 600 dpi, 1,200 x 600 dpi (printer only)
- HDD Capacity
- Opt: 250GB (MXHD15N)
- Std. (56-105 g/m2)
- Dimensions (W x D x H)
- 620 x 617 x 830 millimetre
- Approx. 51 kilogram
- Sharp OSA
- Copy Speed
- 31 ppm (A4), 17 ppm (A3)
- E-Sort / SOPM
- Yes / Yes
- First Copy Time (OC)
- 4.3 Sec
- Continuous Copy
- Max 999
- Scan Resolution
- Max 600 x 600 dpi
- Zoom Range
- 25 - 400 % with 10 preset ratios (50 – 200% using RSPF)
- Power Consumption
- Max. 1.45 kW
- TEC Value (Measured)
- 2.1 kWh
- Noise (Measured)
- Operating: 55.4db, Standby 14.2db

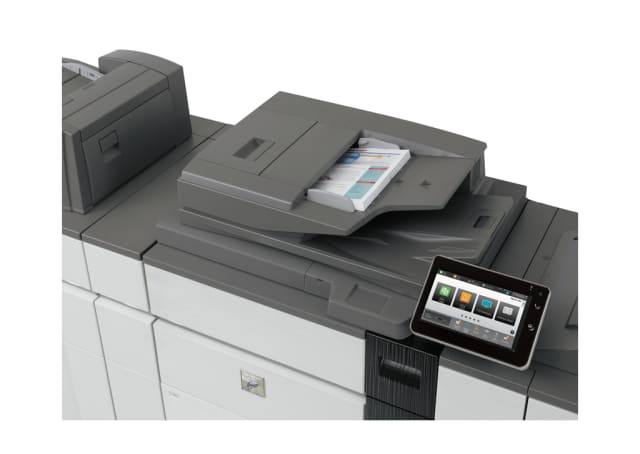

- Document Feeder
- Std. RSPF
- Original Capacity
- Max 100sheets
- First Copy Time
- 7 Sec
- Scan Speed (Copy/Scan)
- Copy/Scan Mode: 56 opm (1-sided)
- Quick/Main Folder
- Quick Folder: Max: 10,000 pages or 1000 files, Main/ Custom: Max. 20,000 pages or 3000 files
- Preview Thumbnails
- PDL (Emulation)
- STD: PCL6, Opt. PostScript3 (MX-PK11)
- USB 2.0, 10Base-T/100Base-TX/1000Base-T
- Wireless LAN
- Optional (MX-EB13)
- TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk)
- Supported OS
- Windows® Vista*, Windows® 7*, Windows® 8*, Windows® 8.1*, Windows® 10*, Windows® Server 2008* / 2008R2 / 2012 / 2012R2 (*32/64bit). Mac OS 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13 & 10.14. with MX-PK11
- Utility Software (Download)
- Status Monitor
- Sharpdesk Mobile
- Airprint Support
- Supported using Third Party Software only
- Pantone Support
- 100, 200, 300, 400, 600 dpi
- Mono: TIFF, PDF, PDF/A, Encrypted PDF, XPS Colour: TIFF, JPEG, PDF, PDF/A, Encrypted PDF, XPS
- Desktop (Sharpdesk), FTP, SMB folder, USB memory, Email, i-Fax & HDD (optional)
- User Registration
- 1 000
- Facsimile Model
- Opt: MXFX11
- Communication Protocol
- Super G3
- Transmission Speed
- 2 sec.range (Super G3/JBIG), 6 sec.range (G3/ECM)
- MH, MR, MMR, JBIG
- Inbound Routing
- Yes (PDF, TIFF & XPS - MX-HD15N required)
- PC Fax
- Yes (For Windows only)
