(Discontinued) 75PPM A3 Mono MFD with DSPF (Discontinued) 75PPM A3 Mono MFD with DSPF (Discontinued) 75PPM A3 Mono MFD with DSPF (Discontinued) 75PPM A3 Mono MFD with DSPF (Discontinued) 75PPM A3 Mono MFD with DSPF (Discontinued) 75PPM A3 Mono MFD with DSPF (Discontinued) 75PPM A3 Mono MFD with DSPF (Discontinued) 75PPM A3 Mono MFD with DSPF (Discontinued) 75PPM A3 Mono MFD with DSPF (Discontinued) 75PPM A3 Mono MFD with DSPF
(Discontinued) 75PPM A3 Mono MFD with DSPF
MXM7570

(Discontinued) 75PPM A3 Mono MFD with DSPF

Discontinued

The user-friendly Sharp MXM7570 is a brilliantly versatile B&W document solution for the modern office. Flexibility is in the DNA of this MFD, you can configure it to fit your office needs exactly.

Packed to the brim with advanced features, it produces documents of consistently high quality. At the same time, it’s easy and intuitive to use for anyone on your team. So, if you want to streamline document workflow in your office, bring the MXM7570 on board.

POA

Multifunctional

This Sharp MFD is a printer/ copier/ scanning/ facsimile* all-in-one device. Enjoy more functions with this space-saving design.

*requires optional expansion

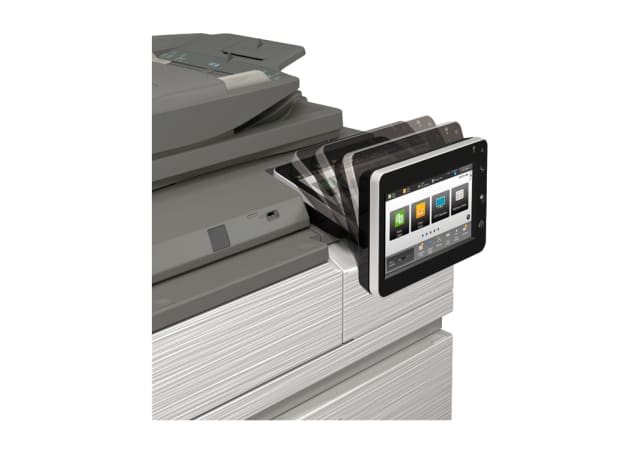

10.1-Inch Colour LCD Touchscreen

Sharp’s award-winning, customisable touchscreen display incorporates an Easy UI mode, for fast, simple operation, with basic functions displayed in large, clearly labelled tiles and keys. And with the Advanced Preview function, you can also check document finishes, edit pages in advance, and more.

Direct Printing/Scanning with USB Drives

Insert a USB drive and a print/scan command screen will automatically pop up on the LCD. Right away you can print files from the USB drive — or you can scan documents directly to the USB drive.

Multi-Layered Security

Multi-layered, leading-edge security features provide enhanced protection and help businesses stay one step ahead of hackers and malicious network intruders. Manage your print security and protect your confidential information whether it is being printed, copied, scanned, faxed, stored, or shared over your network. The standard End-of-Lease feature can also erase all data and personal information at trade-in time.

Cloud Services

Access popular cloud services such as Microsoft® OneDrive™ for Business, SharePoint® Online, Google Drive™ and, Box directly from the MFP operation panel with Sharp’s Cloud Connectors.

Convert Documents via OCR

With standard OCR capabilities, users can easily scan and convert documents to popular file formats including Microsoft Word, PowerPoint and Excel, as well as Searchable PDF & Encrypted PDF. Using Qualcomm DirectOffice technology, you can directly print these same file types from USB thumb drives, cloud applications and mobile devices.

Remote Operation

The Sharp Remote Operation feature lets you display the MFP’s main control panel on the screen of your PC or mobile device. From a remote location, IT Administrators and Help Desk Professionals can control the Sharp MFP and even assist users through the necessary steps when executing MFP functions.

Sharp OSA®

Sharp OSA® technology can help businesses enhance productivity, reduce costs, and simplify IT management. Utilising industry-standard protocols, Sharp MFPs can easily integrate with third-party applications directly from the operation panel. Using secure and scalable communications, Sharp OSA cloud-ready technology further expands flexibility in how the document workflow and security solutions are implemented.

Original Size
Max A3
Operation Panel
Colour 10.1" LCD Touch-Screen
Product Environment

Departmental

Printed Paper Size
Tray : A3W-A5R, Bypass: A3W-A5R, Long Paper (Max. 1300mm x 320mm)
Standard Paper Capacity
3,200 sheets (1,250 + 850 + 2 x 500 + 100-sheet multi bypass)
Maximum Paper Capacity
6,700 sheets (1,250 + 850 + 2 x 500 + 100-sheet multi bypass + 3,500 sheets LCC)
Paper Weight
Tray 1 & 2 : 60 - 105 g/m2, Tray 3 & 4: 60 - 220 g/m2, Multi-bypass Tray: 55 - 300 g/m2
Output Capacity
250 sheets (Opt: MXTU15 Centre Tray Unit), 100 sheets (Opt: MXTR21 Right Exit Tray) or Optional Finisher
Warm-up Time
27 sec or less (Power Button)
Resolution (Output)
9,600 (equivalent) x 600 dpi, 1,200 x 1,200 dpi (Copy/Printer)
Memory
5 GB (STD & Max)
HDD Capacity
500GB
Duplex
Std. (60 – 220 g/m2)
Dimensions (WxDxH)
663 x 772 x 1,218 millimetre
Weight
164 kilogram
Sharp OSA
5.1
Copy Speed
75 ppm (A4), 37 ppm (A3)
E-Sort / SOPM
Yes / Yes
First Copy Time (OC)
3.5 Sec
First Copy Time (OC)
3.9 Sec
Continuous Copy
Max 9,999
Scan Resolution
600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi
Zoom Range
25 - 400% (DSPF 25 - 200%) in 1% increments
Power Consumption
Max. 1.84 kW
TEC Value (Weekly)
5.4 kWh
Noise (Measured)
Operating: 57 dB, Standby 29 dB
Document Feeder
Std. DSPF
Original Capacity
Max 150 Sheets
Scan Speed (Max)
Copy/Image Send Mode: 100 opm (1-sided), 200 opm (2-sided).
Quick/Main Folder
Quick Folder: Max: 10,000 pages or 1000 files, Main/ Custom: Max. 20,000 pages or 3000 files
Preview Thumbnails
Supported (includes Advanced Edit Mode)
PDL (Emulation)
STD: PCL6, Adobe® PostScript®3
Interface
USB2.0, 10Base-T / 100Base-TX / 1000BaseT
Protocol
TCP/IP (IPv4, IPv6),
Supported OS
Windows® 7*, Windows® 8.1*, Windows® 10*, Windows® 11, Windows® Server 2008* / 2008R2 / 2012 / 2012R2 / 2016 / 2019 (*32/64bit). Mac OS 10.9 to 10.15, 11 & 12
Utility Software (Download)
Status Monitor
Sharpdesk Mobile
Supported
Airprint Support
Supported
Pantone Support
N/A
Resolution
Push scan: 100, 150, 200, 300, 400, 600 dpi; Pull scan 75, 100, 150, 200, 300, 400, 600 dpi (50 to 9,600 dpi via user setting)
Format
Mono: TIFF, XPS, PDF, PDF/A, Encrypted PDF, Searchable PDF, Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8. Colour: TIFF, JPEG, XPS, PDF, PDF/A, Encrypted PDF, Searchable PDF, Compact PDF, Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8.
Destination
Desktop (Sharpdesk), FTP, E-Mail, SMB Folder, USB, HDD, TWAIN / WIA compliant, I-Fax (SMTP)
User Registration
Max 2,000 registrations (Max. 500 addresses for one Group Key)
Facsimile Model
Opt : MXFX15
Facsimile Model
Standard
Communication Protocol
Super G3
Transmission Speed
2 sec.range (Super G3/JBIG), 6 sec.range (G3/ECM)
Compression
MH,MR,MMR,JBIG
Inbound Routing
Yes (TIFF, XPS & PDF Format)
PC Fax
Yes (For Windows only)
