(Discontinued) 47PPM A4 Colour MFD with RADF
MXC507F

(Discontinued) 47PPM A4 Colour MFD with RADF

Discontinued

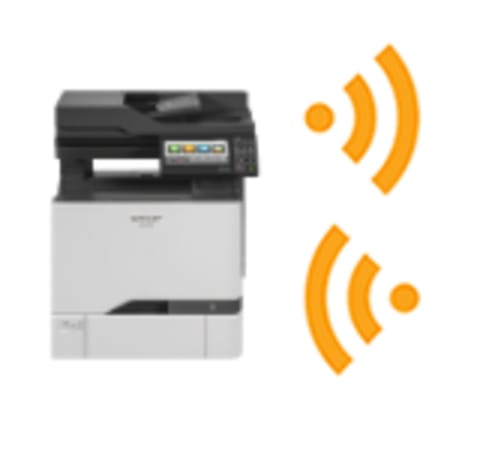

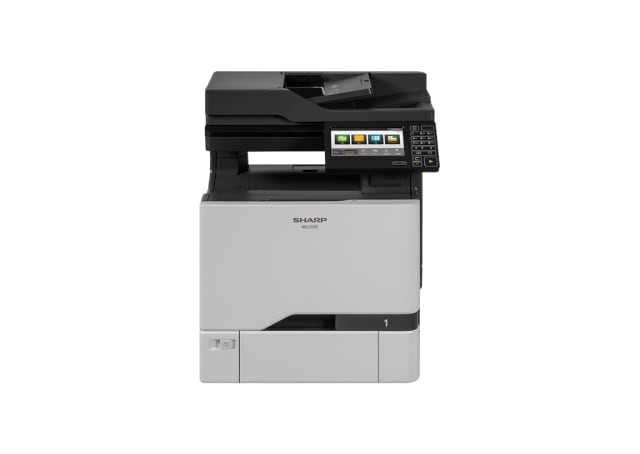

This MX-C507F is a clever, space-saving MFD that produces full-colour documents without the hassle. Thanks to its optional wireless LAN connectivity, anyone in the office can use it - and you can even link it with a network of other MFDs. This versatile document solution will deliver an impressive performance in offices both small and large.

POA

Easy-to-Use Interface

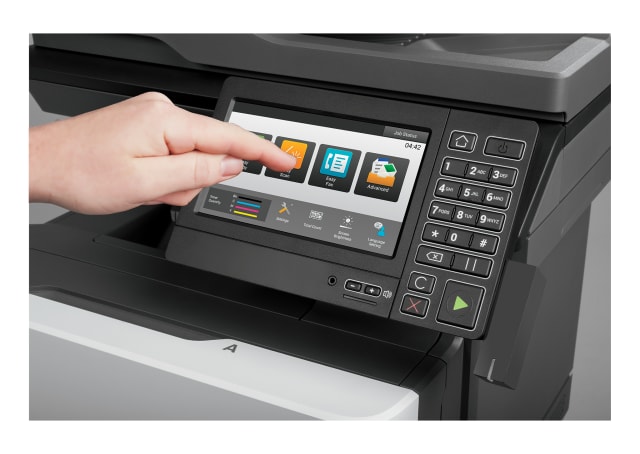

Operating the MXC507F is easy and intuitive with the free-tilting control panel and 7.0-inch colour LCD touchscreen. In Easy UI mode, the touchscreen displays simple icons for frequently used functions. And with the Preview function, you can check the finish of a print and scan job in advance.

High-Efficiency Scanning

The MXC507F’s standard equipped 50-sheet RSPF (reversing single pass feeder) efficiently feeds in either one- or two-sided originals. With a scanning speed of up to 56 opm (one-sided) for both colour and B/W documents, the MFD can complete large jobs with ease and efficiency.

Multiple Scan Destinations

Scanned documents can be distributed in a number of ways. For example, they can be sent as email attachments, or they can be scanned directly to an FTP server for storage. The standard compact PDF function ensures that PDF files are sent and received smoothly.

Office Direct Printing

Print common Microsoft® Office files without using a PC. With this MFD, you can print a Word, Excel®, or PowerPoint® file directly from a mobile device, USB drive, or file server.

Convert Documents via OCR

The standard OCR capability on this MFD lets you convert a scanned document into a searchable PDF file or into an editable Microsoft® Office Word file. This means you can do speedy text searches, even with large-volume documents, and you can easily copy and paste text data into other applications.

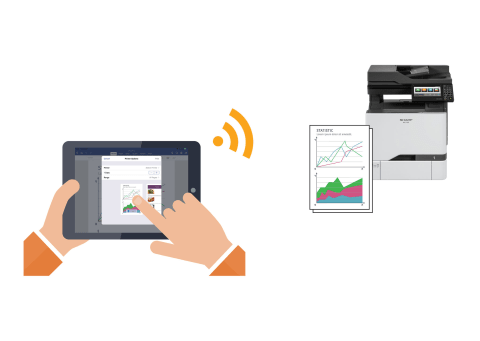

AirPrint Compatible

The MXC507F supports the AirPrint printing feature in Apple’s iOS and macOS operating systems. AirPrint automatically detects MFDs and printers on the same network and then lets you print directly from a mobile device without the need for a printer driver.

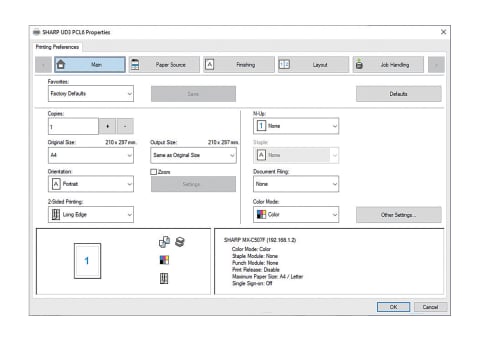

Printer Driver with Easy Setup

The printer driver setup window features a simple design that includes larger buttons and drop-down menus, making it easier than ever to use printer functions.

Security

Built-in security features keep your information safe, whether it’s in a document, on the device, or over your network. Print Hold waits for your command at the control panel before printing. And Confidential Print requires a PIN before printing.

Original Size
Max A4
Operation Panel
Colour 7" LCD Touch-Screen
Product Environment

Small Office/Workgroup

Printed Paper Size
A4-A6
Standard Paper Capacity
650 sheets
Maximum Paper Capacity
2,300 sheets (650 sheets + optional 550-sheet tray x 3)
Paper Weight
Tray: 60 to 218 gsm, Multipurpose feeder: 60 to 218 gsm
Output Capacity
300 sheets
Warm-up Time
Instant Warm Up
Resolution (Output)
2,400 (equivalent) x 600 dpi, 1,200 x 1,200 dpi (Printer)
Memory
2 GB (Max. 4GB)
HDD Capacity
500GB
Duplex
Std. (60-105g/m2)
Dimensions (WxDxH)
505 x 533 x 648 millimetre
Weight
44.8 kilogram
Sharp OSA
Sharp LeS (Apps)
Copy Speed
47 ppm (A4)
E-Sort / SOPM
Yes / Yes
First Copy Time (OC)
Colour: 7.0 sec, B/W: 6.5 sec
Continuous Copy
Max 9,999
Scan Resolution
600 x 600 dpi
Zoom Range
25 - 400% in 1% increments
Power Consumption
Max. 1.14 kW
TEC Value (Weekly)
2 kWh
Noise (Measured)
Operating: 53dB, Standby 16dB
Document Feeder
Std. RADF
Original Capacity
Max 50 sheets
First Copy Time
Colour: 7.0 sec / Mono: 6.5 sec
Scan Speed (Max)
Copy Mode: B/W/Colour 56 opm (1-sided), 26 opm (2-sided)
Preview Thumbnails
Supported (requires Scan Centre Premium App)
PDL (Emulation)
PCL 5c/PCL 6 emulation, PostScript® 3™ emulation
Interface
USB2.0, 10Base-T / 100Base-TX / 1000BaseT, wireless LAN (IEEE 802.11 a/ac/b/g/n)
Protocol
TCP/IP
Supported OS
Windows®7*, Windows®8.1*, Windows®10*. Windows® Server 2008* / 2008R2 / 2012R2 / 2016 / 2019. Mac OS® 10.10, 10.11, 10.12, 10.13, 10.14 & 10.15.
Sharpdesk Mobile
Not supported
Sharpdesk Mobile
Not supported
Sharpdesk Mobile
Not supported
Airprint Support
Supported
Resolution
Push scan: 75, 150, 200, 300, 400, 600 dpi Pull scan: 75, 150, 200, 300, 400, 600 dpi
Format
TIFF, JPEG (colour/greyscale only), XPS, PDF, PDF/A, Encrypted PDF, Searchable PDF, Compact PDF, Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8
Destination
FTP, E-Mail, SMB Folder, USB, HDD
Facsimile Model
Standard
Communication Protocol
Super G3/ G3
Transmission Speed
3 seconds
Compression
MH,MR,MMR,JBIG/JBIG2/JPEG
Inbound Routing
Yes (TIFF, JPEG & PDF Format)
PC Fax
Yes (For Windows only)

Business Products Warranty Statement

This Sharp product is warranted against faults in material and manufacture for 12 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
