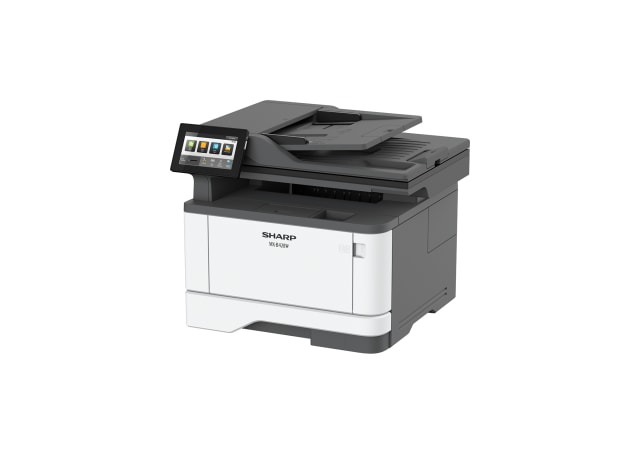

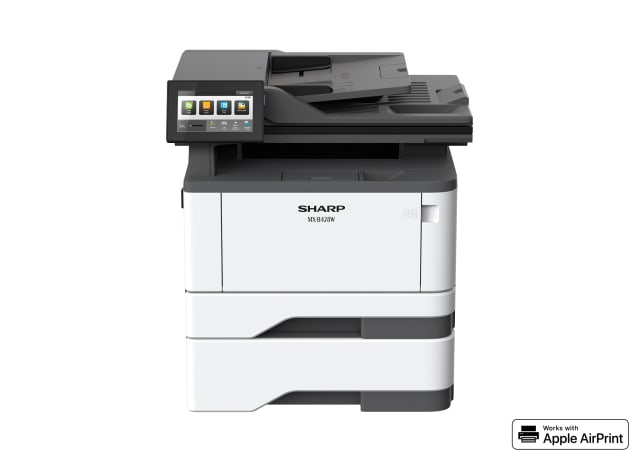

40PPM A4 Mono MFD with DSPF
The MX-B428W is a compact A4 B/W MFP that offers standard wireless connectivity and a host of productivity features that suits the needs of any work environment. Offering print speeds of up to 40ppm and super fast scan speeds of up to 92opm, productivity stays high and ensures your data is printed or captured in no time at all.
In addition to the range of embedded security features that strengthen the device, the MX-B428W has multi-layered security features that ensure your data, both printed and electronic, is safe and secure against attacks.

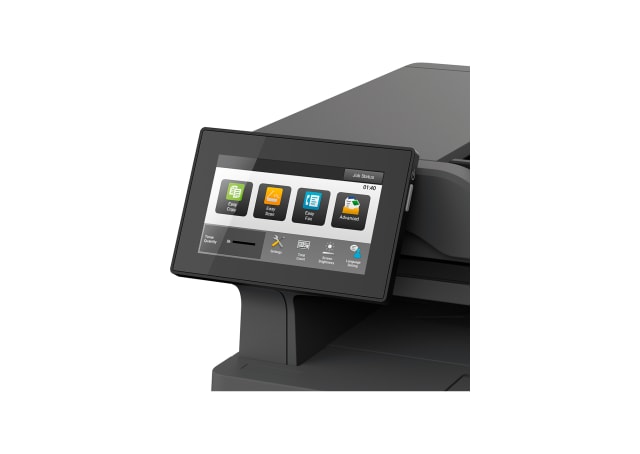

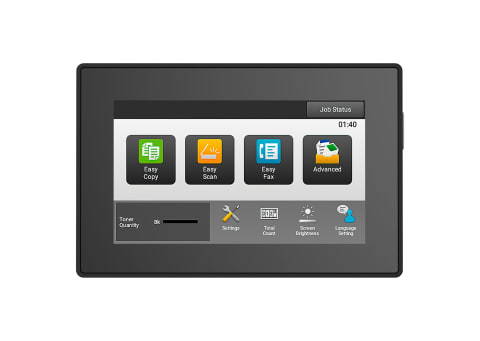

Easy-to-Use Interface
Operating this MXB428W is easy and intuitive with the 4.3-inch colour LCD touchscreen. In Easy UI mode, the touchscreen displays simple icons for frequently used functions. And with the Preview function*, you can check the finish of a print and scan job in advance. * Requires optional 57X9528.
Duplex Single Pass Feeder
The MXB428W’s DSPF (duplex single pass feeder) scans both pages of two-sided documents in one pass—in batches of up to 50 sheets. With a scanning speed of up to 46 opm (BW one-sided) or 92 opm (BW two-sided), the MXB428W can finish large projects with ease and efficiency

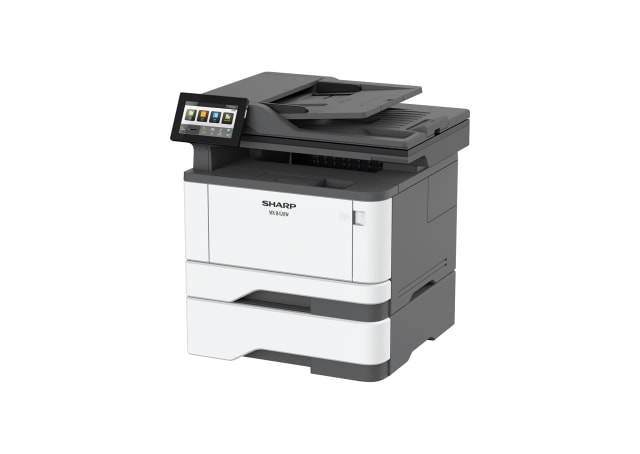

Versatile Paper Handling
The MXB428W has a standard paper capacity of 350 sheets, which can be expanded to 900 sheets. The main paper tray and multipurpose feeder handle a wide variety of paper, including cardstock, envelopes, and small media like A6-size paper.
Printer Driver with Easy Setup
The printer driver setup window features a simple design that includes larger buttons and drop-down menus, making it easier than ever to use printer functions.

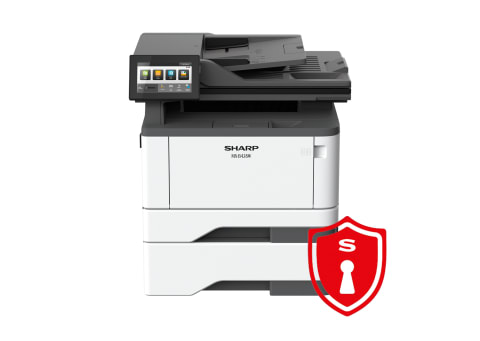

Solid Security
A wide range of security features help to keep your information safe, whether it’s in a document, on the device, or over your network. The Trusted Platform Module (TPM) provides authentication, system integrity checks, and advanced encryption capabilities. As well as improving security for certificates and encryption keys, TPM adds an extra layer of protection by storing hard drive encryption keys separately from your data.
Cloud Service Connectivity
Directly from its control panel, the MFD can connect to popular cloud services such as OneDrive for Business, Google Drive™, Box, and Dropbox. You can easily scan/upload to or print directly from the cloud service.
Multiple Scan Destinations
Scanned documents can be distributed in a number of ways. For example, they can be sent as email attachments or they can be scanned directly to an FTP server for storage. An optional compact PDF function ensures that PDF files are sent and received smoothly.
Convert Documents via OCR
The optional OCR capability on this MFD lets you convert a scanned document into a searchable PDF file or into an editable Microsoft® Office Word file. This means you can do speedy text searches, even with large-volume documents, and you can easily copy and paste text data into other applications.
- Original Size
- Max A4
- Operation Panel
- 4.3" Colour LCD Touch-Screen
- Product Environment
-
Medium Office/Workgroup
- Standard Paper Capacity
- 350 sheets (1 x 250-sheet + 100-sheet multi bypass)
- Maximum Paper Capacity
- 900 sheets (350 sheets & optional 550-sheet tray)
- Paper Weight
- Trays 1-2: 60 to 120 gsm; Multi-purpose feeder: 60 to 217 gsm
- Output Capacity
- 150 sheets
- Resolution (Output)
- 1,200 x 1,200 dpi, 2,400 (equivalent) x 600 dpi, 1,200 (equivalent) x 600 dpi, 600 x 600 dpi, 300 x 300 dpi
- Memory
- 2GB,
- HDD Capacity
- Opt: 57X9528 128GB ISD
- Dimensions (WxDxH)
- 412 x 361 x 354 millimetre
- Weight
- 13.6 kilogram
- Sharp OSA
- Embedded Solutions Framework (eSF)
- Copy Speed
- 40 ppm (A4)
- E-Sort / SOPM
- Yes / Yes
- Continuous Copy
- Max 9,999
- Scan Resolution
- 600 x 600 dpi
- Zoom Range
- 25 - 400% in 1% increments
- Power Consumption
- 580W
- TEC Value (Weekly)
- 0.52 kWh
- Noise (Measured)
- Operating: 50dB (Print)
- Document Feeder
- Std. DSPF
- Original Capacity
- 50 sheets
- Scan Speed (Max)
- Colour: 20 ipm (1-sided), 40 ipm (2-sided); B/W: 46 ipm (1-sided); 92 ipm (2-sided)
- Print Speed (Max)
- 40 ppm
- PDL (Emulation)
- PCL 5e/PCL 6 emulation, PostScript® 3™ emulation
- Interface
- USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, Wireless LAN (IEEE802.11 a/ac/b/g/n)
- Supported OS
- Windows Server® 2016, Windows Server® 2019, Windows Server® 2022, Windows® 10, Windows® 11, Mac OS 10.15, 11, 12, 13, 14, 15 & 26
- Airprint Support
- Supported
- Resolution
- Push scan: 75, 150, 200, 300, 400, 600 dpi Pull scan: 75, 150, 200, 300, 400, 600 dpi
- Format
- STD: JPEG, TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, XPS; searchable PDF, DOCX, XLSX, CSV, text (TXT), rich text (RTF) with optional OCR application
- Destination
- Scan to email/ FTP server/ USB drive/ Network folder (SMB)/ISD
- Requirement
- Standard
- Cloud Connectors
- Microsoft® One Drive® for Business, Google Drive™, Box™ & Dropbox™
- Microsoft Universal Print
- Supported
- Facsimile Model
- Standard
- Communication Protocol
- Super G3/G3
- Transmission Speed
- Less than 3 seconds
- Compression
- MH,MR,MMR,JBIG/JBIG2/JPEG
- Inbound Routing
- Yes (PDF, JPEG or TIFF) to E-mail, FTP, SMB, Fax or Apps
- PC Fax
- Yes (For Windows only)
