80PPM A3 Colour Light Production MFD with DSPF
MX8090N

80PPM A3 Colour Light Production MFD with DSPF

The MX8090N is built for fast, high-volume printing in large-scale settings. Whether at a large company, government office, university, or research centre, it produces beautiful colour documents with ease.

Refined Sharp MFD technology delivers an optimal balance of productivity, quality, and user-friendly operation and a powerful Fiery® printer server option adds further versatility to the MX8090N that can already handle a wide variety of documents.

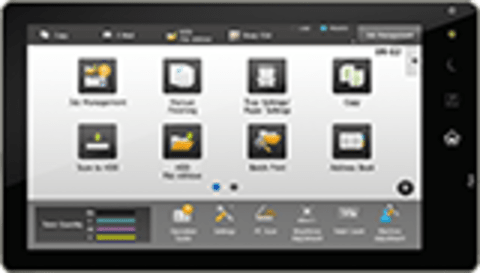

15-4-Inch Colour LCD Touchscreen

Sharp’s award-winning, customisable touchscreen display incorporates an Easy UI mode, for fast, simple operation, with basic functions displayed in large, clearly labelled tiles and keys. And with the MX-PE13 Fiery Controller, Command WorkStation is fully integrated at the MFD control panel.

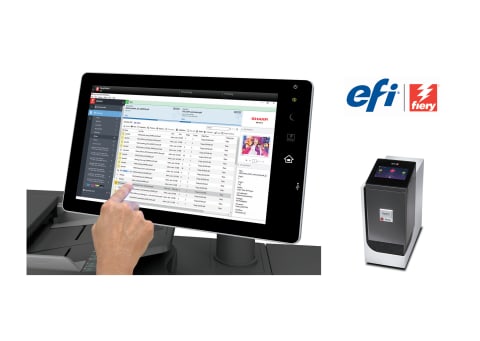

Fiery® Print Server

Paired with an industry-leading EFI™ Fiery print server, this Sharp MFP becomes a powerful integrated solution for managing professional in-plant and busy on-demand printing environments. Two Fiery print server options are available to match your needs.

Multi-Layered Security

Multi-layered, leading-edge security features provide enhanced protection and help businesses stay one step ahead of hackers and malicious network intruders. Manage your print security and protect your confidential information whether it is being printed, copied, scanned, faxed, stored, or shared over your network. The standard End-of-Lease feature can also erase all data and personal information at trade-in time.

Convert Documents via OCR

With standard OCR capabilities, users can easily scan and convert documents to popular file formats including Microsoft Word, PowerPoint and Excel, as well as Searchable PDF & Encrypted PDF. Using Qualcomm DirectOffice technology, you can directly print these same file types from USB thumb drives, cloud applications and mobile devices.

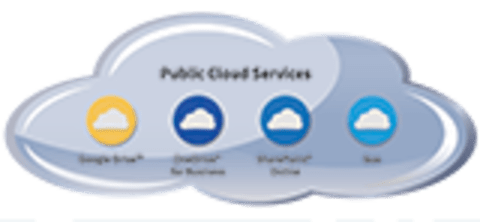

Cloud Services

Access popular cloud services such as Microsoft® OneDrive™ for Business, SharePoint® Online, Google Drive™ and, Box directly from the MFP operation panel with Sharp’s Cloud Connectors.

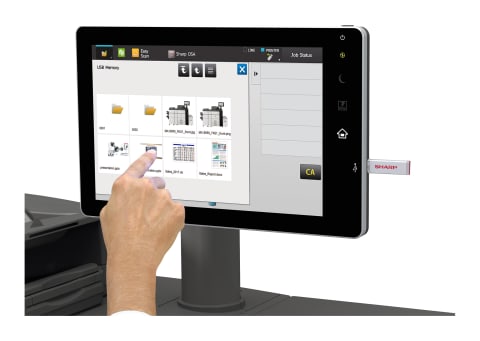

Direct Printing/Scanning with USB Drives

Insert a USB drive and a print/scan command screen will automatically pop up on the LCD. Right away you can print files from the USB drive — or you can scan documents directly to the USB drive.

Triple Air-Feed System

The triple Air-Feed system on the optional MX-LC13N Large Capacity Tray reliably separates and feeds paper to facilitate jam-free operation, whilst supporting a wide range of paper types for proper paper handling.

Multi-Feed Detection System

A precision-engineered Multi-Feed Detection System on this Sharp MFD employs ultrasonic technology to detect misfeeds in the DSPF and Paper Feed Section of the paper trays.

Remote Operation

The Sharp Remote Operation feature lets you display the MFP’s main control panel on the screen of your PC or mobile device. From a remote location, IT Administrators and Help Desk Professionals can control the Sharp MFP and even assist users through the necessary steps when executing MFP functions.

Sharp OSA®

Sharp OSA® technology can help businesses enhance productivity, reduce costs, and simplify IT management. Utilising industry-standard protocols, Sharp MFPs can easily integrate with third-party applications directly from the operation panel. Using secure and scalable communications, Sharp OSA cloud-ready technology further expands flexibility in how the document workflow and security solutions are implemented.

Supported Paper Size
Max A3
Operation Panel
Colour 15.4" LCD Touch-Screen
Product Environment

Light production and Department

Printed Paper Size
Tray: A3W-A5R, Opt: Bypass: 13” x 19.2”& SRA3 -A5R [MX-MF10]
Standard Paper Capacity
3,100 (1200-sheets, 800 sheets, 500 sheets x 2, 100-sheet Multi bypass)
Maximum Paper Capacity
13,500 (1200 + 800 sheets, 500 sheets x 2, 500 sheet bypass, 2,500 sheets x 4 LCT)
Paper Weight
Tray 1 & 2: 60-105gsm, Tray 3 & 4: 60-220gsm, LCC: 60-220gsm, LCT (Air): 55-300gsm, Bypass Tray: 55-300gsm [MX-MF10], 55-220gsm [MX-MF11]
Output Capacity
Optional MXTU14 250-sheet centre tray or Finisher is required, additional MXTR14 100-sheet right tray
Warm-up Time
90 Sec
Resolution (Equivalent)
9,600 (equivalent) x 600 dpi (Colour Copy), 1200x1200 dpi (B/W Copy), 1200 x 1200 dpi ( Printer )
Memory
6 GB (STD & Max)
HDD Capacity
1TB
Duplex
Std. (60 – 300 g/m2)
Dimensions (W x D x H)
982 x 768 x 1,530 millimetre
Weight
224 kilogram
Sharp OSA
5.1
Copy Speed
80 ppm (A4), 45 ppm (A3), 43 ppm (SRA3)
E-Sort / SOPM
Yes / Yes
First Copy Time (OC)
B/W: 3.7sec, Col 5.1sec
Continuous Copy
Max 9,999
Scan Resolution
Colour: 600 x 600 dpi, B/W: 600 x 400 dpi, 600 x 600 dpi
Zoom Range
25 - 400% (DSPF 25 - 200%) in 1% increments
Power Consumption
Max. 3.84 kW
TEC Value (Measured)
8.8 kWh
Noise (Measured)
Standby: 52dB, Operating: 78dB
Document Feeder
Std. DSPF
Original Capacity
Max 150 Sheets
First Copy Time
Colour: 8.8 sec, B/W: 6.3 sec
Scan Speed (Copy/Scan)
Copy/Image Send Mode: 100 opm (1-sided), 200 opm (2-sided).
Quick/Main Folder
Quick Folder: Max 10,000 pages, Main/Custom Folder: Max 35,000 pages or 5,000 files
Preview Thumbnails
Supported (includes Advanced Edit Mode)
PDL (Emulation)
STD: PCL6 emulation, Adobe® PostScript® 3™
Interface
USB2.0, 10Base-T / 100Base-TX / 1000BaseT
Wireless LAN
N/A
Protocol
TCP/IP (IPv4, IPv6)
Supported OS
Windows® 7*, Windows® 8.1*, Windows® 10*, Windows® Server 2008* / 2008R2 / 2012 / 2012R2 / 2016 / 2019 (*32/64bit). Mac OS 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13, 10.14 & 10.15.
Utility Software (Download)
Status Monitor
Sharpdesk Mobile
Not Supported
Airprint Support
Not Supported
Pantone Support
Supported
Resolution
Push scan: 100, 150, 200, 300, 400, 600 dpi Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi 50 to 9,600 dpi via user setting
Format
Mono: TIFF, XPS, PDF, PDF/A, Encrypted PDF, Searchable PDF, Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8. Colour: TIFF, JPEG, XPS, PDF, PDF/A, Encrypted PDF, Searchable PDF, Compact PDF, Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8.
Destination
FTP, E-Mail, SMB Folder, USB, HDD, TWAIN / WIA compliant
User Registration
Max 2,000 registrations (Max. 500 addresses for one Group Key)
Utility Software (Download)
None
Facsimile Model
Not Supported
Communication Protocol
N/A
Transmission Speed
N/A
Compression
N/A
Inbound Routing
N/A
PC Fax
N/A

Business Products Warranty Statement

This Sharp product is warranted against faults in material and manufacture for 6 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
