65PPM A3 Colour MFD with DSPF
MX6580N

65PPM A3 Colour MFD with DSPF

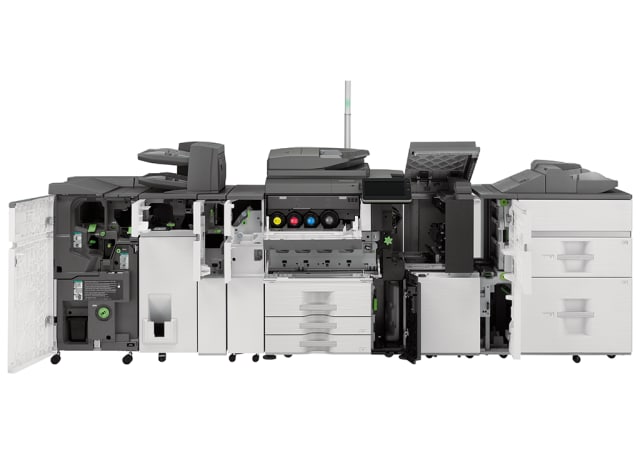

The Sharp MX-6580N is the versatile full-colour document powerhouse you’ve been waiting for. Its superb range of features give you the power to streamline your office workflow while maintaining consistently high document quality. The MX-6580N can be customised to meet the differing needs of each user in the workplace. Add this MFD‚ intuitive ease of use and you’ve got a new hub of document productivity for your office.

10.1-Inch Colour LCD Touchscreen

Sharp’s award-winning, customisable touchscreen display incorporates an Easy UI mode, for fast, simple operation, with basic functions displayed in large, clearly labelled tiles and keys. And with the Advanced Preview function, you can also check document finishes, edit pages in advance, and more.

Fiery® Print Server

Paired with the MX-PE12, an industry-leading EFI™ Fiery embedded print server, this Sharp MFP becomes a powerful integrated solution for managing professional in-plant and busy on-demand printing environments.

Multi-Layered Security

Multi-layered, leading-edge security features provide enhanced protection and help businesses stay one step ahead of hackers and malicious network intruders. Manage your print security and protect your confidential information whether it is being printed, copied, scanned, faxed, stored, or shared over your network. The standard End-of-Lease feature can also erase all data and personal information at trade-in time.

Link with Mobile Devices

Connecting Sharp MFPs to mobile devices is easy. Not only can you send scanned documents to mobile devices, you can also print documents or photos sent from those devices. The Sharpdesk Mobile print/scan app also lets you easily link your mobile device to the MFP by simply scanning the MFPs QR Code.

Cloud Services

Access popular cloud services such as Microsoft® OneDrive™ for Business, SharePoint® Online, Google Drive™ and, Box directly from the MFP operation panel with Sharp’s Cloud Connectors.

Direct Printing/Scanning with USB Drives

Insert a USB drive and a print/scan command screen will automatically pop up on the LCD. Right away you can print files from the USB drive — or you can scan documents directly to the USB drive.

Convert Documents via OCR

With standard OCR capabilities, users can easily scan and convert documents to popular file formats including Microsoft Word, PowerPoint and Excel, as well as Searchable PDF & Encrypted PDF. Using Qualcomm DirectOffice technology, you can directly print these same file types from USB thumb drives, cloud applications and mobile devices.

Remote Operation

The Sharp Remote Operation feature lets you display the MFP’s main control panel on the screen of your PC or mobile device. From a remote location, IT Administrators and Help Desk Professionals can control the Sharp MFP and even assist users through the necessary steps when executing MFP functions.

Pantone Color Matching

PANTONE’s expert colour analysts have tuned the PANTONE colours specifically for Sharp MFPs to ensure accurate colours without extensive colour expertise or the use of expensive workflow software. When using the Postscript printer driver, the carefully crafted colour tables faithfully, and easily, reproduces colours from the Pantone Coated Series of colours onto printed documents.

Sharp OSA®

Sharp OSA® technology can help businesses enhance productivity, reduce costs, and simplify IT management. Utilising industry-standard protocols, Sharp MFPs can easily integrate with third-party applications directly from the operation panel. Using secure and scalable communications, Sharp OSA cloud-ready technology further expands flexibility in how the document workflow and security solutions are implemented.

Supported Paper Size
Max A3
Operation Panel
Colour 10.1" LCD Touch-Screen
Product Environment

Medium Office/Workgroup

Product Environment

Light production and Department

Product Environment

Departmental

Printed Paper Size
Tray: A3W - A5R, Bypass: 13 x 19.2 - A5R
Standard Paper Capacity
3,100 (1,200-sheet + 800-sheet + 2x500-sheet + 100-sheet multi bypass)
Maximum Paper Capacity
8,500 (5,000-sheet + 1,200-sheet + 800-sheet + 2x500-sheet + 500-sheet)
Paper Weight
Tray 1 & 2: 60-105 g/m2, Tray 3 & 4: 60-220g/m2, Bypass: 55-300g/m2 (except MXMF11 LCT Bypass Tray)
Output Capacity
Optional MXTU14 250-sheet centre tray or Finisher is required, additional MXTR14 100-sheet right tray
Warm-up Time
55 sec
Resolution (Equivalent)
9,600 (equivalent) x 600 dpi (Colour Copy), 1200x1200 dpi (B/W Copy), 1200 x 1200 dpi ( Printer )
Memory
6 GB (STD & Max)
HDD Capacity
1TB
Duplex
Std. (60 - 300 g/m2)
Dimensions (W x D x H)
845 x 844 x 1,221 millimetre
Weight
211 kilogram
Sharp OSA
5
Copy Speed
65 ppm (A4), 33 ppm (A3)
E-Sort / SOPM
Yes / Yes
First Copy Time (OC)
Colour: 5.6 sec, B/W: 4.0 sec
Continuous Copy
Max 9,999
Scan Resolution
Colour: 600 x 600 dpi; B/W: 600 x 400 dpi, 600 x 600 dpi
Zoom Range
25 - 400% (DSPF 25 - 200%) in 1% increments
Power Consumption
Max. 3.84 kW
TEC Value (Measured)
7 kWh
Noise (Measured)
Standby: 34.2dB, Operating 59.9dB ( Measurement with MXFN21/RB15/RB12)
Document Feeder
Std. DSPF
Original Capacity
Max 150 sheets (80 g/m2)
First Copy Time
Colour: 9.2 sec, B/W: 6.5 sec
Scan Speed (Copy/Scan)
Copy Mode: B/W 80 opm / Colour 53 opm (1-sided), B/W 160 opm / Colour 106 opm (2-sided); Scan Mode: B/W & Colour 100 opm (1-sided), B/W & Colour 200 opm (2-sided).
Quick/Main Folder
Quick Folder: Max 10,000 pages, Main/Custom Folder: Max 35,000 pages or 5,000 files
Preview Thumbnails
Supported (includes Advanced Edit Mode)
PDL (Emulation)
STD: PCL6 emulation, Adobe® PostScript® 3™
Interface
USB 2.0, 10Base-T/100Base-TX/1000Base-T
Protocol
TCP/IP (IPv4, IPv6),
Supported OS
Windows® 7*, Windows® 8.1*, Windows® 10*, Windows® Server 2008* / 2008R2 / 2012 / 2012R2 / 2016 / 2019 (*32/64bit). Mac OS 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13, 10.14 & 10.15.
Utility Software (Download)
NST-Lite; Sharpdesk with Network Scanner Tool (1 user license)
Utility Software (Download)
Status Monitor
Sharpdesk Mobile
Supported
Airprint Support
Supported
Pantone Support
Supported
Resolution
Push scan: 100, 150, 200, 300, 400, 600 dpi Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi 50 to 9,600 dpi via user setting
Format
Mono: TIFF, XPS, PDF, PDF/A, Encrypted PDF, Searchable PDF, Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8. Colour: TIFF, JPEG, XPS, PDF, PDF/A, Encrypted PDF, Searchable PDF, Compact PDF, Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8.
Destination
Desktop (Sharpdesk), FTP, E-Mail, SMB Folder, USB, HDD, TWAIN / WIA compliant, I-Fax (SMTP)
User Registration
Max 2,000 registrations (Max. 500 addresses for one Group Key)
Facsimile Model
Opt : MXFX15
Facsimile Model
Standard
Communication Protocol
Super G3
Transmission Speed
2 sec.range (Super G3/JBIG), 6 sec.range (G3/ECM)
Compression
MH,MR,MMR,JBIG
Inbound Routing
Yes (TIFF, XPS & PDF Format)
PC Fax
Yes (For Windows only)
