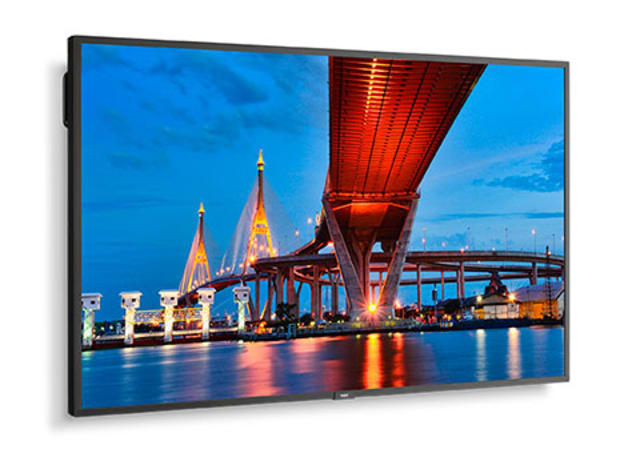

MultiSync® M651-2 65" Large Format Display
For economical signage in 24/7 commercial environments, the 65” MultiSync® M651-2 delivers all the professional performance and features you need, whilst minimising the cost of ownership.
With a 500 cd/m2 brightness output and anti-glare panel, the viewer enjoys excellent visual quality unhindered by reflections, with a slim, aesthetic design for unobtrusive integration.
Intuitive professional content delivery
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.
With the optional MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
Benefits
- Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
- Secure remote management – control your devices remotely and securely using NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources.
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Panel Technology
- IPS with Direct LED backlights
- Screen Size
- 65 inch
- Max. Resolution
- 3840 x 2160 pixels
- Max. Brightness (average)
- 500 cd/m2
- Contrast Ratio
- 8000:1
- Viewing Angle (H/V)
- 178
- Response Time
- 8ms
- Panel Refresh Rate (Hz)
- 60Hz
- Haze Level (%)
- 25
- Supported Orientation
- Landscape, Portrait & Face Up
- Dimensions (W x D x H)
- 1452.3 x 68.1 x 837.3 millimetre
- Bezel Width
- 14.9 (even) millimetre
- Weight
- 29.4 kilogram
- VESA Mounting [mm]
- 4 holes M8 400 x 400 (FDMI)
- Native Resolution
- 3840 x 2160 pixels
- Supported Resolution
- 1920x1080, 3840x2160, 1024x768, 1920x1200, 4096x2160, 1280x720, 1366x768, 1280x1024, 1440x900, 1600x1200, 1650x1050, 2560x1600, 1920x2160
- Aspect Ratio
- 16:9
- Input Video Digital
- 1 x Display Port (with HDCP) 2 x HDMI (with HDCP)
- Input Audio Digital
- 1 x Display Port 2 x HDMI
- Input Control
- LAN 100Mbit Remote control wire (3.5mm jack), RS232
- Input Data
- 1 x USB 2.0 (Media Player)
- Compute Module Slot
- RPi4 Compute Module
- Intel SDM
- Accepts Intel® Smart Display Modules Large and Small up to 66W
- Power Consumption
- 165W (typical)
- Power Savings Mode
- <0.5W (Normal Standby); 2W (Network Standby)
- Operating Hours
- 24/7
- Supported Image Formats
- JPG (baseline, progressive, RGB, CMYK); max. resolution 15,360 x 8,640
- Supported Video Formats
- MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265); TS (MPEG2, H.264, HEVC/H.265); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
- Supported Audio Format
- MP3 (MP3); max. bit-rate 320 kBit/s
- Operating Temperature
- 0ºC to 40ºC
- Operating Humidity
- 20% to 80%
- Storage Temperature
- -20ºC to 60ºC
- Storage Humidity
- 10% to 90%
- Certificates
- Energy Star 8.0, RCM, EMC Class B, PSB, UL/C-UL, VCCI
- Special Characteristics
- DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
- External Control
- AMX NetLinx Support, ASCII Control Commands, Crestron Connected, HDMI CEC, HTTP Browser, PJLink, Scheduled Timer, SNMP
- Audio (Speakers)
- Integrated Speakers (10W + 10W)
- Shipping Content (Accessories)
- HDMI Cable, Power Cable, Remote Control, 2x AAA Batteries, Setup Manual
- Remote Management
- Automated Email Alerts, NEC NaViSet Administrator 2
- Security
- Disable HW Buttons, Disable IR Functionality, Emergency Notification
