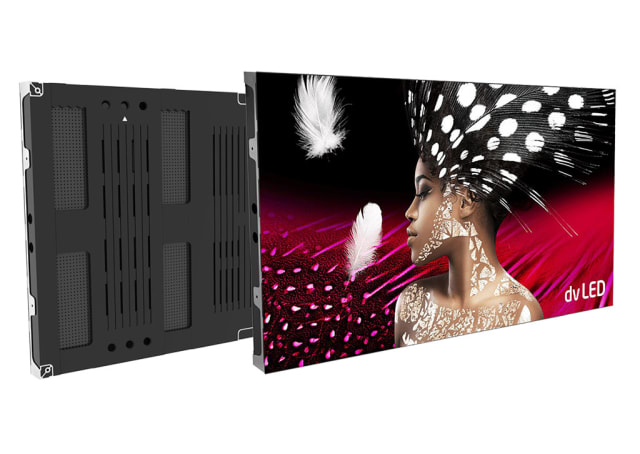

Indoor 1.2 mm Black Face LED Panel – VESA Mount
For bezel-free viewing experiences using vivid LED technology, Sharp’s LED Solution delivers essential visualization for scalable large digital surfaces.
Even for cost-conscious deployments for presentation and signage, Sharp’s LED Solution provides easy to install long lasting quality with industrial-grade power supplies.
High Resolution VESA mount brilliance
Either free standing or for seamless integration into interiors, the slim design of the N-Series LED panel is sleek and chic as, with the latest innovation in digital content delivery. Benefit from excellent viewing angles, consistent vibrant colours, superb brightness and long-lasting performance for high impact display projects.
In addition, Sharp’s innovative VESA mount compatible PRO-N SMD series generates crisp, clear viewing without fading or distortion in any ambient light, whether it’s day or night, bright or dark.
Benefits
- Care-free installation – VESA 400 mount compatible with bundled solutions that deliver all you need to get your LED video wall up and running.
- Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
- Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with no gap necessary due to minimal heat emission.
- Front serviceable modules – with front access to the LED modules, maintenance is easy.
- Visual excellence – high contrast and high brightness is inherent in LED delivery, benefit from Sharp’s long-lasting quality.
PRO-VESA Series Bundles
LED-PV012i-110 (1.2mm, 110”, Full HD).
LED-PV012i-220 (1.2mm, 220”, 4K UHD).
- LED Type
- SMD (1010)
- Aspect Ratio
- 16:9
- Lifetime
- 100,000 hrs (50% brightness)
- Resolution per m²
- 627159
- Max. Brightness (average)
- 800 cd/m2
- Contrast Ratio
- 6,000:1
- Viewing Angle (H/V)
- 160˚ / 160˚
- Dimensions (W x D x H) per module
- 303 x 8 x 341 millimetre
- Dimensions (W x D x H)
- 1212 x 58 x 682 millimetre
- Weight
- 15 kilogram
- Input Video Digital
- 1 x HDMI 2.0; 1 x DP 1.2; 1 x DVI-D, 1 x GenLock; 1 x LAN; 1 x USB IN;
- Input Control
- 1x USB OUT (Cascading)
- Power Consumption
- 135W per m² (normal use), 450W per m² (max)
- Operating Temperature
- -10°C to 60°C
- Operating Humidity
- 10% to 90%
- Serviceability
- Front Service
- IP Level
- IP40
- Certificates
- CCC, CE, Class B, FCC, RCM
