Indoor LED 1.25 mm Black Face LED Panel
For bezel-free viewing experiences using vivid LED technology, Sharp’s LED Solution delivers essential visualization for scalable large digital surfaces.
Even for cost-conscious deployments for presentation and signage, Sharp’s LED Solution provides easy to install long lasting quality with industrial-grade power supplies.
Essential bundles of brilliance

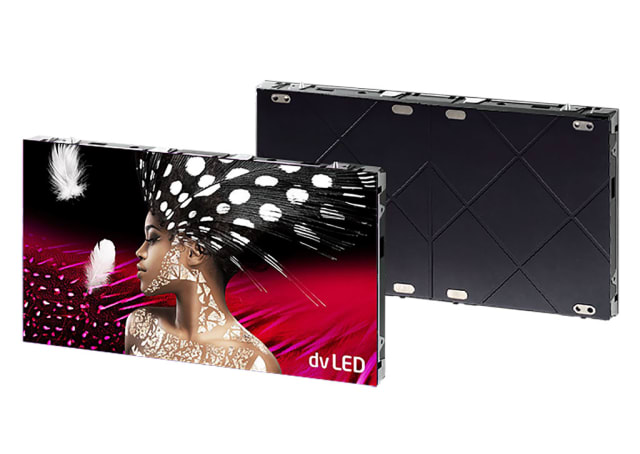

Either free standing or for seamless integration into interiors, the slim design of the PRO-N-Series LED panel is sleek and chic as, with the latest innovation in digital content delivery. Benefit from excellent viewing angles, consistent vibrant colours, superb brightness and long-lasting performance for high impact display projects.
In addition, the ultra-lightweight die-cast chassis allows for accurate and seamless installation and rapid maintenance from the front.
Benefits
- Care-free installation – with bundled solutions that deliver all you need to get your LED video wall up and running.
- Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
- Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with no gap necessary due to minimal heat emission.
- Front serviceable modules – with front access to the LED modules, maintenance is easy.
- Visual excellence – high contrast and high brightness is inherent in LED delivery, benefit from Sharp’s long-lasting quality.
- LED Type
- SMD (1010)
- Aspect Ratio
- 16:9
- Lifetime
- 100,000 hrs (50% brightness)
- Resolution per m²
- 129600
- Max. Brightness (average)
- 600 cd/m2
- Contrast Ratio
- 5000:1
- Viewing Angle (H/V)
- 140˚ / 140˚
- Dimensions (W x D x H) per module
- 150 x 8 x 168.75 millimetre
- Weight
- 4.8 kilogram
- Input Video Digital
- 1 x HDMI 2.0; 1 x DP 1.2; 1 x DVI-D, 1 x GenLock; 1 x LAN; 1 x USB IN;
- Input Control
- 1x USB OUT (Cascading)
- Operating Temperature
- 0ºC to 40ºC
- Storage Humidity
- 10% to 80%
- Serviceability
- Front Service
- Certificates
- CCC, CE, FCC, RCM, Class A,
