LED-PRO-E-080
PRO-E Outdoor LED Panel 8mm pixel pitch
Sharp’s innovative PRO-E SMD series Outdoor LED generates crisp, clear viewing without fading or distortion in any ambient light, whether it’s day or night, bright or dark.
POA
Stunning Visibility in a Bright World
For bezel-free viewing experiences using vivid LED technology, Sharp’s LED Solution delivers essential visualization for scalable large digital surfaces. For reliable deployments of outdoor signage, Sharp’s LED Solution provides long lasting Sharp/NEC quality with industrial-grade components.
Benefit from excellent viewing angles, consistent vibrant colours, superb brightness and long lasting performance for high impact display projects.
Benefits

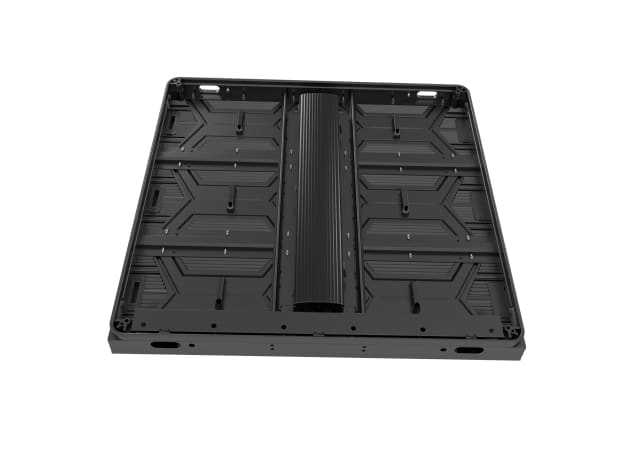

- Care-free installation – Low weight aluminium framed solution that reduces support structure loading for a more cost effective project.
- Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.

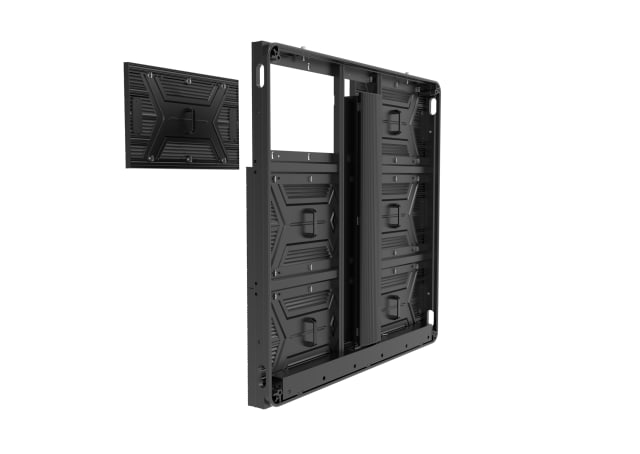

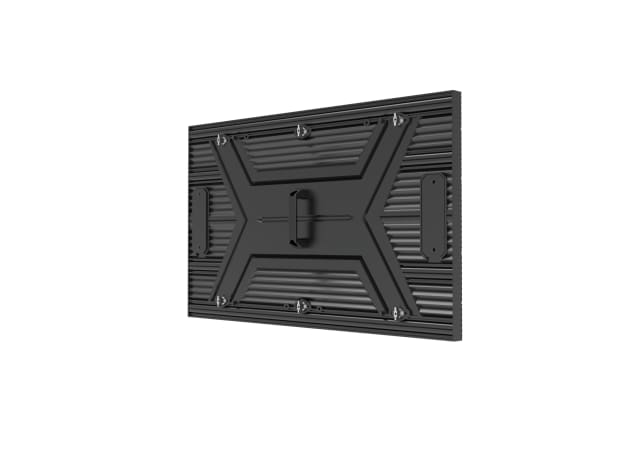

- Front & Rear serviceable modules – with front and/or rear access to the LED modules, maintenance is easy.
- Visual excellence – high contrast and high brightness is inherent in LED delivery, benefit from our long-lasting quality.
- LED Type
- SMD (2727)
- Aspect Ratio
- 1:1
- Lifetime
- 100,000 hrs (50% brightness)
- Pixel Pitch
- 8
- Resolution per m²
- 15625
- Cabinet Pixels
- 120 x 120
- Max. Brightness (average)
- 7000 cd/m2
- Contrast Ratio
- 8000:1
- Viewing Angle (H/V)
- 160˚ / 160˚
- Dimensions (W x D x H)
- 960 x 80 x 960 millimetre
- Weight
- 28 kilogram
- Power Consumption
- 223W per m² (normal use), 664W per m² (max)
- Operating Temperature
- -10ºC to 50ºC
- Operating Humidity
- 10% to 95%
- Serviceability
- Front & Rear Service
- IP Level
- IP66
- Certificates
- CCC, CE, FCC, RCM, Class A,
