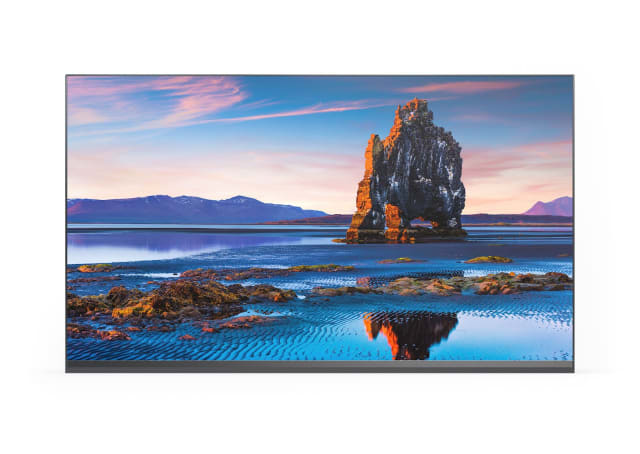

Fine-pitch Essential 1.9 mm Indoor LED Fine-pitch Essential 1.9 mm Indoor LED
Fine-pitch Essential 1.9 mm Indoor LED
LED-FE019I2

Fine-pitch Essential 1.9 mm Indoor LED

For bezel-free viewing experiences using vivid LED technology, Sharp’s FE Series delivers essential visualization for scalable large digital surfaces.

POA

Essential modules of brilliance

Even for cost-conscious deployments for presentation and signage, Sharp’s FE Series provides long lasting Sharp/NEC quality with industrial-grade power supplies in easy to install, off the shelf bundle solutions for safe operation with minimised downtimes.

Either free standing or for seamless integration into interiors, the slim design is sleek and chic as befits the latest innovation in digital content delivery. Benefit from excellent viewing angles, consistent vibrant colours, superb brightness and long lasting performance for meeting rooms and signage applications.

Benefits

  • Ultimate Versatility – small 16:9 modules allowing excellent flexibility within the available space.
  • Front serviceable modules – with front access to the LED modules, maintenance is easy.
  • Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
  • Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.
  • Visual excellence – high contrast and high brightness is inherent in LED delivery, benefit from NEC’s long lasting quality.

FE-series 1.9mm LED Bundles

LED-FE019i2-110 (1.9mm, 110” HD).

LED-FE019i2-165 (1.9mm, 165” Full HD).

LED Type
SMD (1010)
Aspect Ratio
16:9
Lifetime
100,000 hrs (50% brightness)
Pixel Pitch
1.9
Resolution per m²
277008
Cabinet Pixels
320 x 180
Max. Brightness (average)
700 cd/m2
Contrast Ratio
5000:1
Viewing Angle (H/V)
170˚ / 170˚
Dimensions (W x D x H)
608 x 49 x 342 millimetre
Weight
8.8 kilogram
Power Consumption
275W per m² (normal use), 600W per m² (max)
Serviceability
Front Service
Certificates
CE; ETL; FCC Class A; RoHS; RCM
