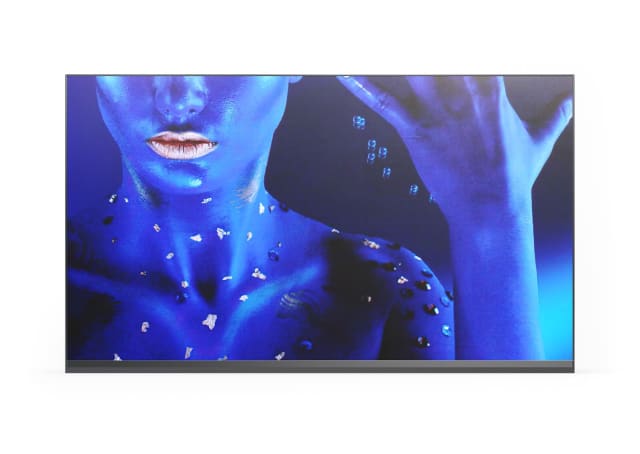

Fine-pitch Advanced 1.5mm Indoor LED Fine-pitch Advanced 1.5mm Indoor LED
Fine-pitch Advanced 1.5mm Indoor LED
LED-FA015I2

Fine-pitch Advanced 1.5mm Indoor LED

For premium large surface visualization, Sharp’s fine pitch LED FA series modules provide standard resolution, direct view LED screens for applications in meeting spaces and exclusive signage.

POA

Nothing less than magnificent

With a depth of just 5 cm, plus complete internal cabling, the FA series presents a sleek profile for a bezel-free viewing experience. With excellent viewing angles, consistent vibrant colours and superb brightness; the FA series delivers content that gets noticed. Designed with high quality components and maintenance access from the front, the FA series provides a display solution with longevity and good return on investment. The prime solution for boardrooms, auditoria, luxury retail environments and control rooms.

Benefits

  • Ultimate Versatility – small 16:9 modules allowing excellent flexibility within the available space.
  • Secure performance for demanding applications – with high-end components and redundant module design with additional power supply and data cards to ensure ongoing operations with a minimal loss of brightness levels.
  • Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
  • Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.
  • Visual excellence – high contrast and high brightness is inherent in LED delivery, benefit from Sharp/NEC’s long lasting quality.

FA-series 1.5mm LED Bundles

LED-FA015i2-137 (1.5mm, 137” Full HD).

LED Type
SMD (1010)
Aspect Ratio
16:9
Lifetime
100,000 hrs (50% brightness)
Pixel Pitch
1.5
Resolution per m²
398892
Cabinet Pixels
384 x 216
Max. Brightness (average)
800 cd/m2
Contrast Ratio
5000:1
Viewing Angle (H/V)
170˚ / 170˚
Dimensions (W x D x H)
608 x 49 x 342 millimetre
Weight
8.8 kilogram
Power Consumption
275W per m² (normal use), 600W per m² (max)
Serviceability
Front Service
Certificates
CE; ETL; FCC Class A; RoHS; RCM
