2.5 mm Indoor LED Module
LED-E025i

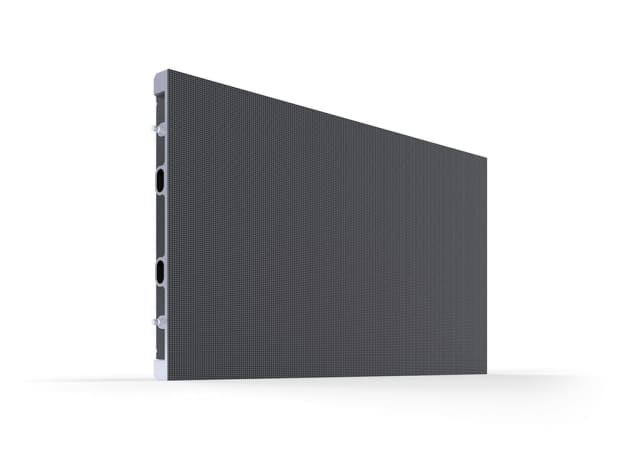

2.5 mm Indoor LED Module

Sharp/NEC’s direct view indoor LED displays provide crystal clear images for the ultimate bezel-free visual experience.

Vivid high bright images are viewable in superb clarity from any viewing distance and angle to ensure your message is received with the greatest impact.

POA

Large Image Presentation, Budget Preservation

Bringing all the advantages of fine-pitch LED to more cost-conscious applications in corporate meeting rooms and digital signage, the E series lacks nothing in high impact content delivery. The direct view LED solution includes everything you need to implement large surface visualisation without hindrance from bezels, with superb brightness and high contrast which gets noticed even in areas of high ambient light.

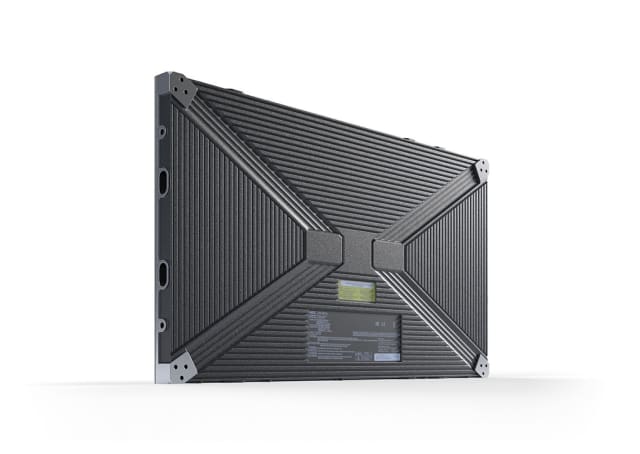

Designed for quick and easy set-up, the product is light weight and super slim for unobtrusive integration. Front serviceable, all components are easily accessed for maintenance. As you would expect from a quality manufacturer, there is no compromise to reliability, longevity and safety in offering the E-series solution.

Benefits

  • Trouble free installation – wall mounted or freestanding deployments, the mechanical cabinet design makes installation quick and easy.
  • Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
  • Low-profile integration – the super slim and light weight modules align with perfection to create a large digital canvas which integrates unobtrusively into any environment.
  • Front serviceable modules – with front access to the LED modules, maintenance is easy.
  • Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.

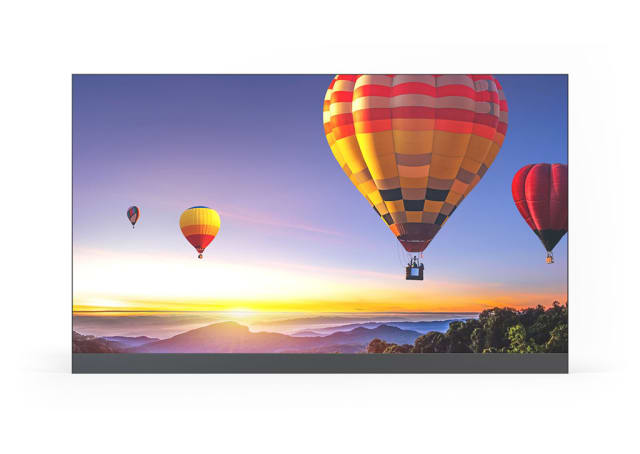

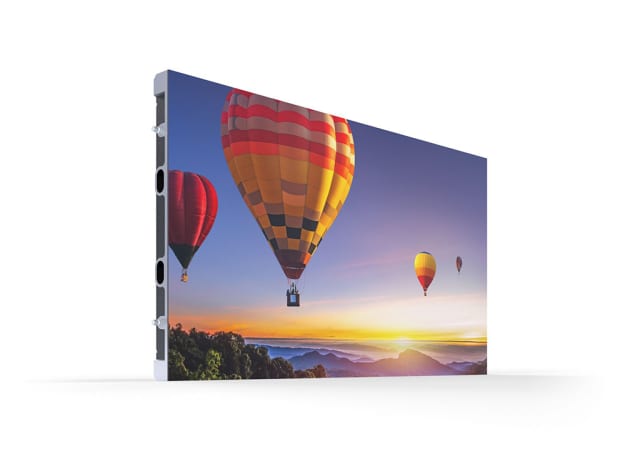

E-series LED Bundles

LED-E025i-217 (2.5mm, 217”, Full HD).

LED Type
SMD (2121)
Aspect Ratio
16:9
Lifetime
100,000 hrs (50% brightness)
Resolution per m²
160000
Max. Brightness (average)
1000 cd/m2
Contrast Ratio
7000:1
Viewing Angle (H/V)
160˚ / 155˚
Dimensions (W x D x H) per module
150 x 8 x 168.75 millimetre
Weight
4.7 kilogram
Power Consumption
198W per m² (normal use), 617W per m² (max)
Storage Temperature
-20ºC to 40ºC
Storage Humidity
10% to 80%
Serviceability
Front Service
Special Characteristics
Flush Surface SMD Design; Single Data Receiving Cards; Single Power Supplies
Certificates
CE; ETL; FCC Class A; RoHS
Shipping Content (Accessories)
LED Modules (1 Cabinets, 4 Pixel Cards); Spare Parts Kit
