E868 86" UHD Professional Large Format Display
E868

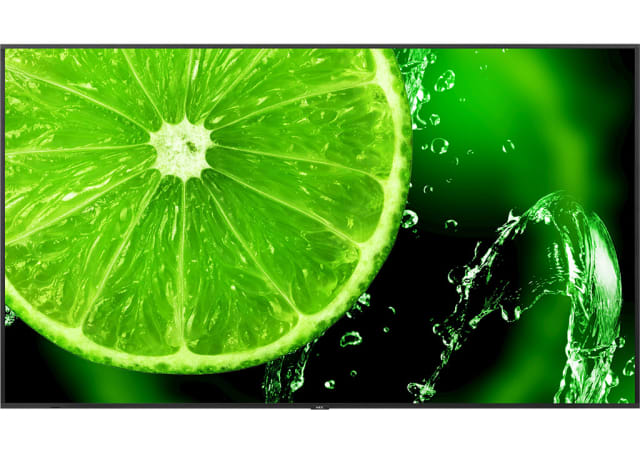

E868 86" UHD Professional Large Format Display

Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership with long lifetimes.

Professional haze levels ensure great visibility without distracting reflections - along with brightness of up to 350 cd/m², the E868 meets the demands of today’s meeting environments.

POA

Functionality you need for presentations and digital signage

An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution.

With this display, presenters will feel confident during meetings of up to 12 participants whilst retailers and hospitality facilities can boost sales through digital signage. For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NaviSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.

Benefits

  • Commercial Performance – with 400cd/m2 brightness and supporting both Landscape & Portrait orientation, the E-series are a go-to commercial display.
  • Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
  • Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
  • Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
  • Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
  • Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.

Panel Technology
IPS with Direct LED backlights
Screen Size
86 inch
Max. Resolution
3840 x 2160 pixels
Max. Brightness (average)
400 cd/m2
Contrast Ratio
1200:1
Viewing Angle (H/V)
178
Haze Level (%)
25
Supported Orientation
Landscape, Portrait
Dimensions (W x D x H)
1927.6 x 83.2 x 1099 millimetre
Weight
46 kilogram
VESA Mounting [mm]
4 holes; 600 x 400 (FDMI); M8 kilogram
Horizontal Frequency [kHz]
15 - 136
Vertical Frequency [Hz]
24-75
Supported Resolution
4096x2160, 3840x2160, 1920x1200, 1920x1080, 1280x720, 640x480,
Input Video Analogue
1 x VGA Component (RCA); Composite (RCA)
Input Video Digital
3 x HDMI
Input Audio Analogue
1 x 3.5 mm jack
Input Audio Digital
3 x HDMI
Input Control
LAN 100Mbit RS232
Input Data
1 x USB 2.0 (Media Player) 1 x USB Type-C (5V/3A, power for external devices)
Output Audio Digital
1 x SPDIF
Remote Control
Remote Control IR; RS-232C (9-pin D-sub) Input
Installation

Landscape
Portrait

Ambient Light Sensor
Integrated triggered actions programmable
Power Consumption
200-300W
Power Savings Mode
<0.5W (Normal Standby); 2W (Network Standby)
Operating Hours
18/7
Supported Image Formats
JPG (baseline, progressive, RGB, CMYK); max. resolution 15,360 x 8,640
Supported Video Formats
MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265); TS (MPEG2, H.264, HEVC/H.265); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Format
MP3 (MP3); max. bit-rate 320 kBit/s
Operating Temperature
0ºC to 40ºC
Operating Humidity
20% to 80%
Certificates
Energy Star 8.0, RCM, EMC Class B, PSB, UL/C-UL, VCCI
Audio (Speakers)
Integrated Speakers (10W + 10W)
