(Discontinued) 20PPM A3 Colour MFD with RSPF (Discontinued) 20PPM A3 Colour MFD with RSPF (Discontinued) 20PPM A3 Colour MFD with RSPF (Discontinued) 20PPM A3 Colour MFD with RSPF (Discontinued) 20PPM A3 Colour MFD with RSPF (Discontinued) 20PPM A3 Colour MFD with RSPF (Discontinued) 20PPM A3 Colour MFD with RSPF
(Discontinued) 20PPM A3 Colour MFD with RSPF

(Discontinued) 20PPM A3 Colour MFD with RSPF

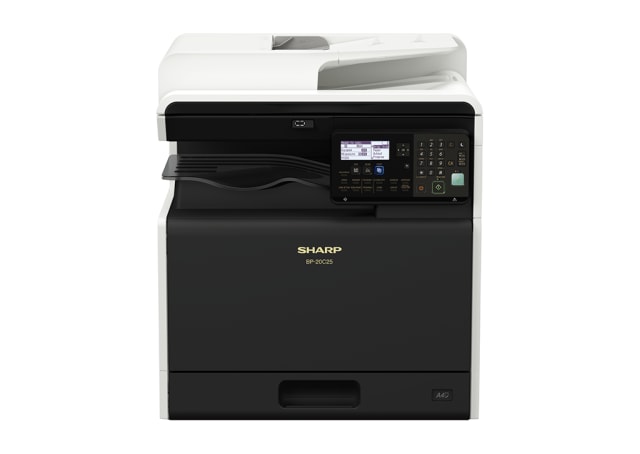

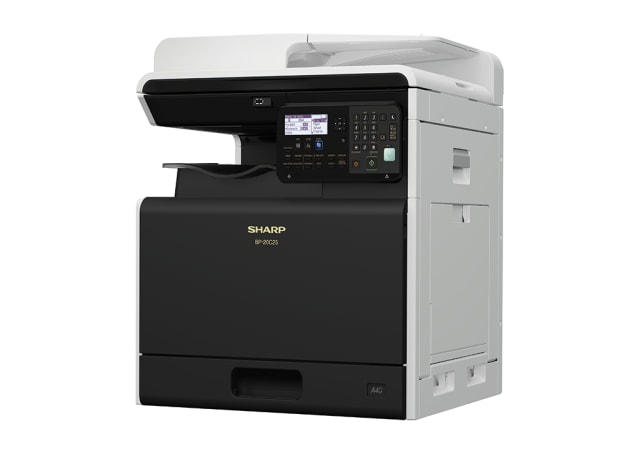

Get the job done with this smartly designed full-colour A3 MFD. The BP20C20 has a clean and compact 560 mm-wide profile, so you can place it on a desk, on a counter‚ almost anywhere.

The simple interface makes it easy and intuitive to operate. And its ability to handle a wide range of essential business functions is sure to enhance your workflow.

As a standalone machine or as part of an office network of MFDs, it’s built to fit in perfectly in any workplace.

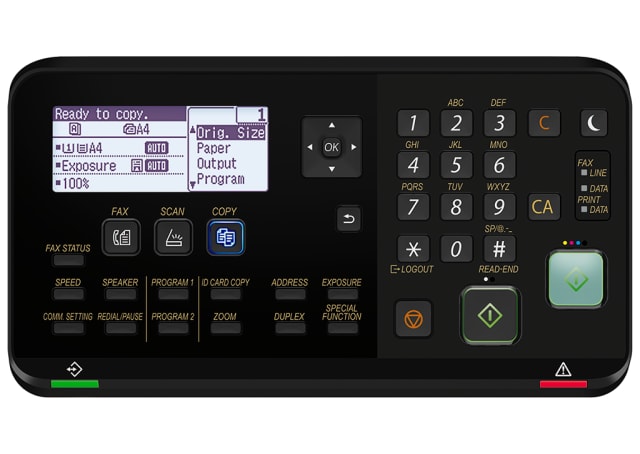

5-Line LCD with Backlight

The MFD’s control panel is designed to be easy to use. Along with function icons and large buttons, it features a 5-line LCD with backlight. The buttons are indented in the middle to make them easier to press.

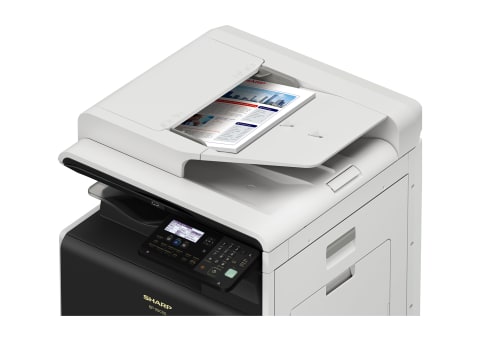

Automatic Document Feeding

The standard RSPF (reversing single pass feeder) efficiently feeds in up to 100 sheets of either one- or two-sided originals. Because you can feed in a batch of multiple pages at once, it boosts copying and scanning efficiency.

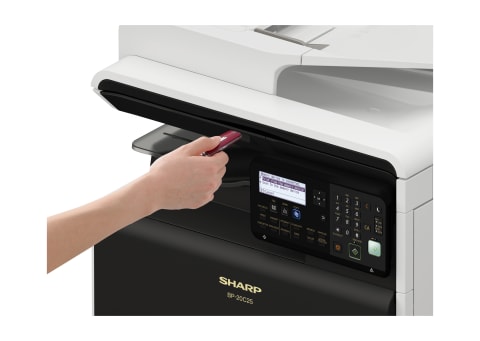

Direct Printing/Scanning with USB Drives

Insert a USB drive into the MFD and a command screen will automatically pop up on the LCD. Right away you can print files from the USB drive or scan documents directly to the USB drive.

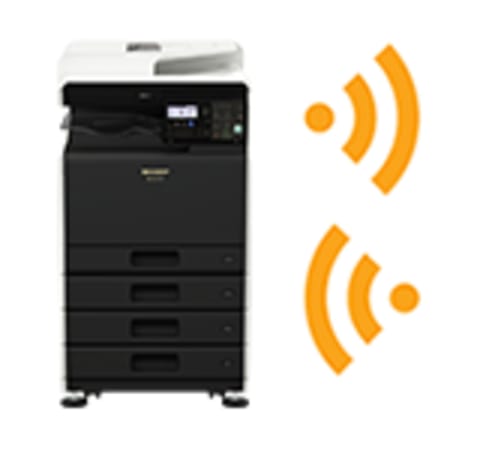

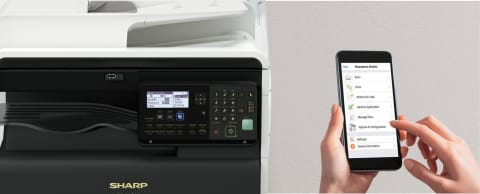

Link with Mobile Devices

Connecting Sharp MFPs to mobile devices is easy. With the optional Wireless LAN adaptor, not only can you send scanned documents to mobile devices, you can also print documents or photos sent from those devices. The Sharpdesk Mobile print/scan app also lets you easily link your mobile device to the MFP by simply scanning the MFPs QR Code®. *Options required

Multiple Scan Destinations

There are many ways to distribute scanned documents. They can be sent to an FTP server, to a network folder, or to a USB drive. Or they can be sent directly to a designated PC desktop or as e-mail attachments.

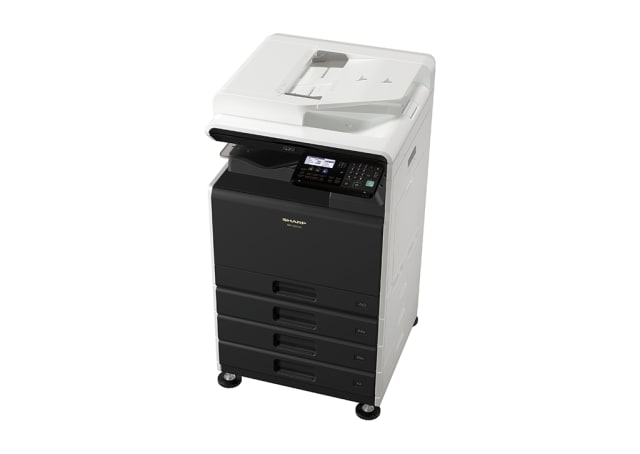

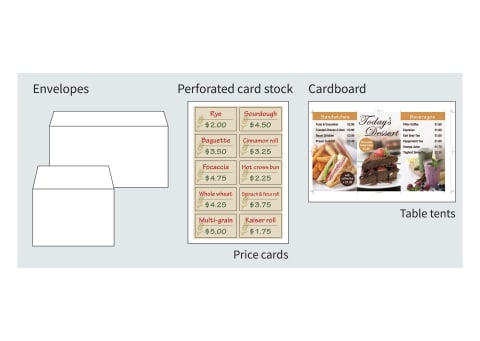

Versatile Paper Handling

The main unit paper tray can take paper sizes from A3 to A5, while the multi bypass tray can also handle A6 paper. The optional paper feed units handle paper up to 220 g/m2 thick, while the multi bypass tray takes paper up to 256 g/m2 thick. In addition to plain paper, the MFD can handle a number of other paper types, such as envelopes, removable adhesive paper, and glossy paper.

Original Size
Max A3
Operation Panel
5 Line LCD Display
Product Environment

Small Office/Workgroup

Printed Paper Size
Tray : A3-A5R, Bypass: A3W-A6R
Standard Paper Capacity
250 sheets (250-sheet x 1 + 100-sheet multi bypass)
Maximum Paper Capacity
1,850 sheets (250-sheet x 1 + 100-sheet multi bypass + 500-sheet x 3)
Paper Weight
Tray 1: 60 - 105 g/m2, Tray 2-4: 60 - 220 g/m2, Bypass Tray: 55 - 256 g/m2
Output Capacity
250 sheets (Face down)
Warm-up Time
29 sec or less (Power Button)
Resolution (Output)
600 x 600 dpi
2GB (copy/print shared)
HDD Capacity
Std. (60 - 105 g/m2)
Dimensions (WxDxH)
560 x 560 x 653 millimetre
52 kilogram
Sharp OSA
Not Supported
Copy Speed
20 ppm (A4), 12 ppm (A3)
E-Sort / SOPM
Yes / Yes
First Copy Time (OC)
Colour: 11.5 sec B/W: 8.0 sec
Continuous Copy
Max 999
Scan Resolution
600 x 600 dpi, 600 x 400 dpi,
Zoom Range
25 - 400% (RSPF 25 - 200%) in 1% increments
Power Consumption
Max. 1.84 kW
TEC Value (Weekly)
1.2 kWh
Noise (Measured)
Operating: 50 dB, Standby 12 dB
Document Feeder
Original Capacity
Max 100 sheets
First Copy Time
Colour: 14.8 sec / Mono: 10.5 sec
Scan Speed (Max)
Copy Mode: 30 opm B/W, 26 opm Colour; Scan Mode: 37 opm (1-sided)
Quick/Main Folder
Not Supported
Preview Thumbnails
Not Supported
PDL (Emulation)
STD: PCL6, Opt. PostScript3 (MXPK11)
USB2.0, 10Base-T / 100Base-TX / 1000BaseT
Wireless LAN
Optional (MXEB18)
TCP/IP (IPv4, IPv6),
Supported OS
Windows® 7*, Windows® 8.1*, Windows® 10*, Windows® Server 2008* / 2008R2 / 2012 / 2012R2 / 2016 / 2019 / 2022 (*32/64bit); Mac OS 10.7 to 10.15, 11 & 12 with MX-PK11
Utility Software (Download)
NST-Lite; Sharpdesk with Network Scanner Tool (user license required)
Utility Software (Download)
Status Monitor
Sharpdesk Mobile
Supported (via Wireless Access Point or MXEB18)
Airprint Support
Supported - Opt: PostScript®3 [MXPK11] required
Pantone Support
100, 150, 200, 300, 400, 600 dpi
Mono: TIFF & PDF; Colour/Greyscale: TIFF, JPEG & PDF
Desktop (NST-Lite), FTP, E-Mail, SMB Folder, USB & TWAIN
User Registration
Max 200
Facsimile Model
Opt: BPFX10
Communication Protocol
Super G3
Transmission Speed
2 sec.range (Super G3/JBIG), 6 sec.range (G3/ECM)
Inbound Routing
Yes (PDF Format)
PC Fax
Yes (For Windows only)

Business Products Warranty Statement

For purchases from 1st November 2022, this Sharp product is warranted against faults in material and manufacture for 12 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
