23PPM A3 Mono MFD
AR6023DV

23PPM A3 Mono MFD

Whether you’re printing, copying, or scanning, the AR6023DV makes document management easy for everyone in the office. Core document functions are complemented by a range of useful advanced functions. And if the needs of your growing enterprise evolve, rest assured the AR6023DV is ready to grow with you. Optional hardware and software upgrades let you add useful extra functions to your office setup. It all comes together in one compact, productivity-boosting package.

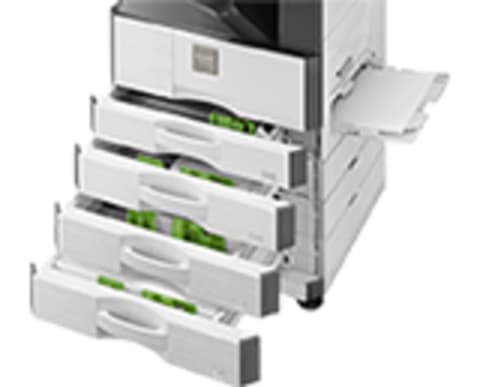

Effective Paper Handling

For large-volume jobs and a wider selection of available paper sizes, the AR6023DV can accommodate two types of extra trays that increase total paper capacity to 1,850 sheets.

Scan to USB Drive

Adding the optional AR-NB7 N Expansion Kit upgrades the AR-6023DV to a full-colour network and USB device scanner, enhancing its scan functionality so that scanned files can be stored directly onto a USB drive.

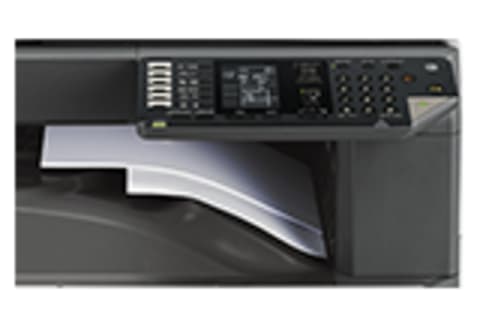

Rotation Sort*

When using Rotation Sort function, every other copy is rotated 90 degrees when delivered to the output tray. This takes the hassle out of sorting copies and comes in handy when you need to print multiple copies. *Two paper trays must be loaded with the same-sized paper in a different orientation (landscape and portrait).

Sharpdesk Mobile*

Sharpdesk Mobile is a mobile print/scan application. With Sharpdesk Mobile, users can import documents scanned on the Sharp MFD to their mobile devices for previewing and saving. And files on a mobile device can be printed out on the MFD, sent as e-mail attachments, or used in other applications. *Options required.

Supported Paper Size
Max A3
Operation Panel
Custom LCD
Product Environment

Small Office/Workgroup

Printed Paper Size
Max. A3 – Min. A6R
Standard Paper Capacity
350 sheets (1 x 250-sheet + 100-sheet multi bypass)
Maximum Paper Capacity
1,850 sheets (1 x 250-sheet + 3 x 500-sheet + 100-sheet multi bypass)
Paper Weight
56-105 g/m2 (Bypass 56-200 g/m2)
Output Capacity
250 sheets (Face down)
Warm-up Time
25 sec. or less
Resolution (Equivalent)
600 x 600 dpi
Memory
64MB (Max. 448MB)
HDD Capacity
N/A
Duplex
Std. (60-105g/m2)
Dimensions (W x D x H)
599 x 612 x 511 millimetre
Weight
29 kilogram
Sharp OSA
Not Supported
Copy Speed
23 ppm (A4), 12 ppm (A3)
E-Sort / SOPM
Yes / Yes
First Copy Time (OC)
6.4 sec. or less
Continuous Copy
Max 999
Scan Resolution
Max 600 x 600 dpi
Zoom Range
25 – 400 % with 10 preset ratios (50 – 200% using RSPF)
Power Consumption
Max. 1.2 kW
TEC Value (Measured)
1.6 kWh
Noise (Measured)
Operating: 69db, Standby: 31db
Document Feeder
Opt: ARRP11N [RSPF]
Original Capacity
Max 100 sheets
First Copy Time
6.4 sec or less
Scan Speed (Copy/Scan)
Copy Mode: 23 opm (1-sided)
Quick/Main Folder
N/A
Preview Thumbnails
N/A
Print Speed (Max)
23 ppm (A4), 12 ppm (A3)
PDL (Emulation)
STD: SPLC (Sharp Printer Language with Compression), Opt: PCL 6, PostScript® 3 emulation
Interface
USB 2.0, Opt: 10Base-T/100Base-TX
Wireless LAN
N/A
Protocol
TCP/IP (IPv4)
Supported OS
Windows® Vista*, Windows® 7*, Windows® 8*, Windows® 8.1*, Windows® 10*, Windows® Server 2008* / 2008R2 / 2012 / 2012R2 / 2016 (*32/64bit). Mac OS 10.6.x, 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x, 10.12.x,
Utility Software (Download)
Button Manager. Sharpdesk v3.5 (3 user license) is supplied as standard with Opt: ARNB7N [Network Expansion Kit]
Utility Software (Download)
N/A
Sharpdesk Mobile
Supported
Airprint Support
N/A
Pantone Support
N/A
Resolution
Push scan: 75, 100, 150, 200, 300, 400, 600 dpi Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi; Twain 50 dpi to 9,600 dpi via user setting
Format
TIFF, PDF, JPEG (Colour/Greyscale only) & BMP (with Button Manager only)
Destination
Email, Desktop (Sharpdesk), FTP, USB memory
User Registration
N/A
Facsimile Model
Not Supported
Communication Protocol
N/A
Transmission Speed
N/A
Compression
N/A
Inbound Routing
N/A
PC Fax
N/A

Business Products Warranty Statement

This Sharp product is warranted against faults in material and manufacture for 6 months.

In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian Customers
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please contact Sharp Customer Care.
